    EAN-Nr.
    3250616049260
    Packaging
    1 piece

    Binary input 6 fold, universal, modular, KNX TXA306

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Binary input 6 fold, universal, modular, KNX

    TXA306

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Archi­tec­ture
    • Bus system
      EIB
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    Elec­tric current
    • Number of entry circuits
      6
    Connectivity
    • With bus system KNX radio
      No
    Equip­ment
    • External signal voltage neces­sary
      No
    • Radio frequency bidirec­tional
      No
    • With battery
      No
    • With HVAC control
      No
    Install­a­tion, mounting
    • Mounting on
      DIN rail
    Internal use only
    • Number of half modules of 17,5 mm
      8
    Lighting
    • LED controlling
      No
    Mater­ials
    • Material
      Plastic
    • Colour
      Light grey
    • RAL code
      7035
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      0 - 45 °C
    Voltage
    • Input voltage
      24 - 230 V
    • Oper­ating voltage over bus
      21 - 32 V
    • Type voltage supply
      AC/DC
    Dimen­sions
    • Length
      70 mm
    • Height
      90 mm
    • Depth
      60 mm
    Texts
    • Type of connec­tion
      With quick­con­nect plug-in terminals

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration TXA306
    PDF
    Hager RoHS report TXA306
    PDF

    Downloads

    • Image TXA306 | Hager

      Product Image TXA306

    • Product datasheet

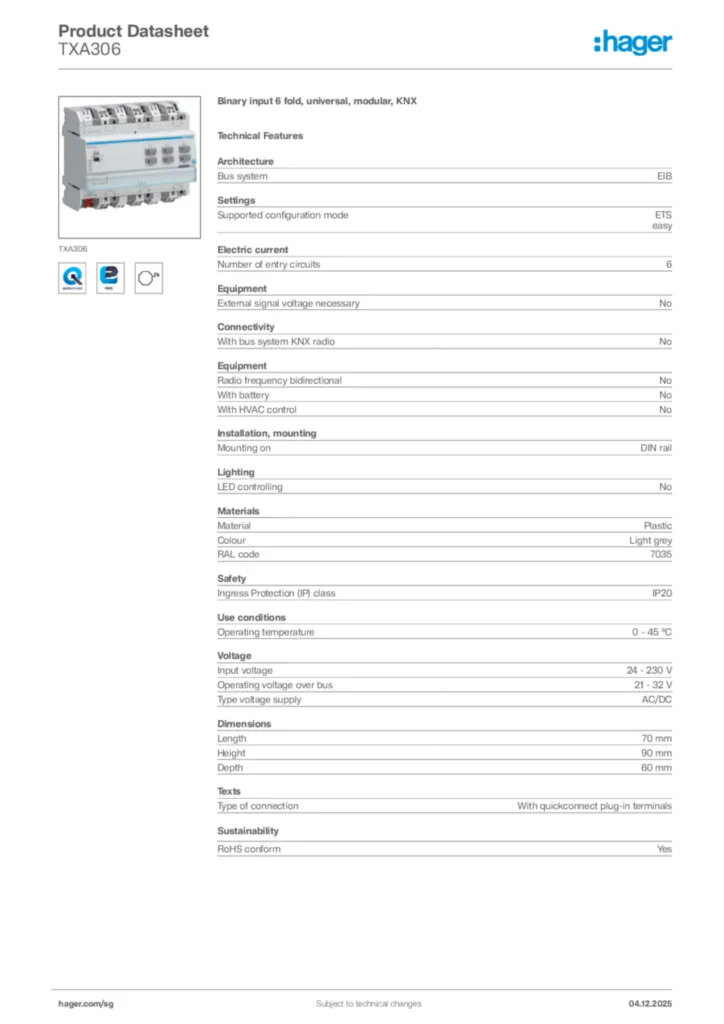

      Image Hager Product data sheet TXA306 | Hager

      Hager Product data sheet TXA306

      Binary input 6 fold, universal, modular, KNX

      PDF

    • Operating manual

      Image Operating manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2022-02-10 | Hager

      Operating manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2022-02-10

      PDF
      5,16 MB

    • KNX product database

      Image Logiciel d'application ETS du TXA306 | Hager

      Logiciel d'application ETS du TXA306

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      KNXPROD
      702,32 kB
      Image Logiciel d'application ETS du TXA306 | Hager

      Logiciel d'application ETS du TXA306

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      VD5
      1,71 MB

    • Application Guide

      Image Application description Easy TXA304_TXA306_TXA310_TXB302_TXB304_TXB322_TXB344 | Hager

      Application description Easy TXA304_TXA306_TXA310_TXB302_TXB304_TXB322_TXB344

      Application Guide en-GB 2015-02-11

      PDF
      2,35 MB
      Image Application description TXA306 | Hager

      Application description TXA306

      Application Guide en-GB 2021-04-28

      PDF
      1,88 MB

    • Function description

      Image Description d'application TXB3XX_TXA3XX | Hager

      Description d'application TXB3XX_TXA3XX

      Function description en-GB 2020-01-01

      PDF
      1,48 MB
