Weekly time switch EASY, 2 modules TXA022
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Optional accessories
-
Accessories/spare parts for time switches 1 products available
Technical characteristics
Settings
-
Supported configuration modeETS, easy
Voltage
-
Operating voltage over bus21 - 32 V
Connectivity
-
With bus system KNX radioNo
Equipment
-
Number of channels2
-
Summer-/wintertime switchoverYes
Scope of delivery
-
Bus connection includedYes
Functions
-
Battery backup43830 h
-
Power reserve in years5 y
Use conditions
-
Operating temperature-5 - +45 °C
Materials
-
ColourLight grey
Texts
-
FunctionFunctions e.g. switching, dimming, blinds, light scenes, heating, operating modes, date, time
Capacity
-
Number of modules2
Connection
-
Cross-section flexible conductor1.5 - 10 mm²
-
Cross-section rigid conductor1 - 6 mm²
Dimensions
-
Height85 mm
-
Width36 mm
-
Depth97 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

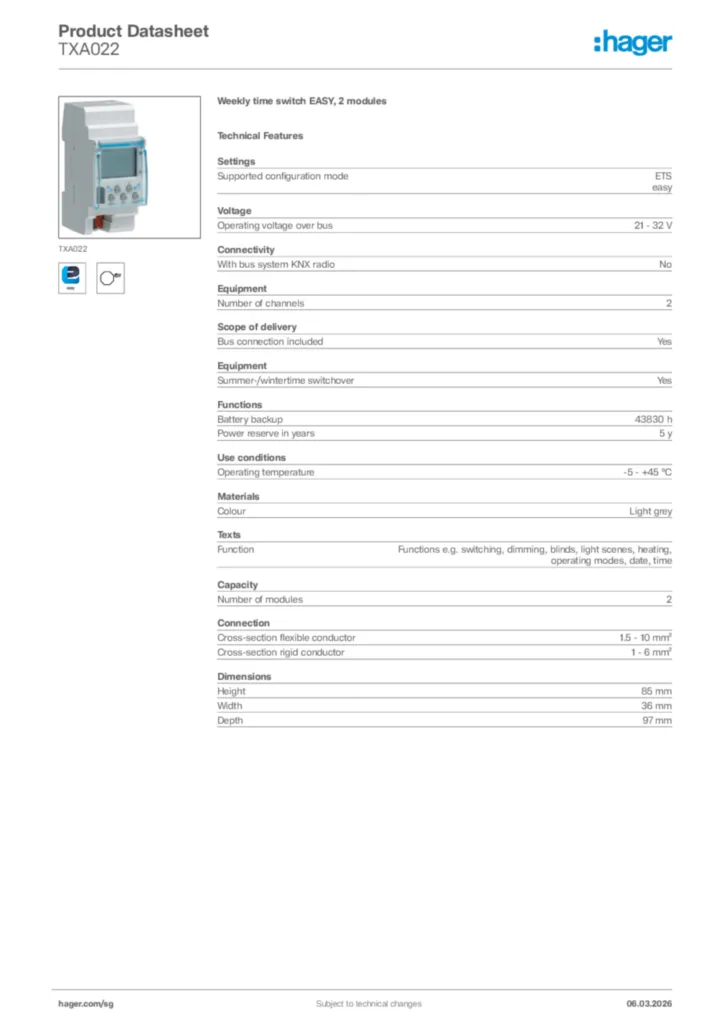

Hager Product data sheet TXA022
Weekly time switch EASY, 2 modules
PDF -
Installation manual
Installation manual en-GB, fr-FR 2009-10-23
PDF3,04 MB -
KNX product database
Logiciel d'application ETS du TXA022
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
VD525,12 kB
Logiciel d'application ETS du TXA022
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
KNXPROD41,17 kB
