6-channel remote control TU406
EAN-Nr.
3250616014060
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Frequency
-
Frequency transmission868 - 868 MHz
-
Radio transmission frequency868,30 MHz
Voltage
-
Operating voltage6 - 6 V
Functions
-
Max. radio transmission range outdoors100 m
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
Controls and indicators
-
Number of buttons6
Safety
-
Ingress Protection (IP) classIP30
Use conditions
-
Operating temperature0 - 45 °C
Materials
-
ColourPolar white
Dimensions
-
Height133,6 mm
-
Width50,2 mm
-
Depth16 mm
Equipment
-
With batteryYes
Battery
-
Battery life5 years
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, 1 up/down button control, Reset function (to factory setting)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

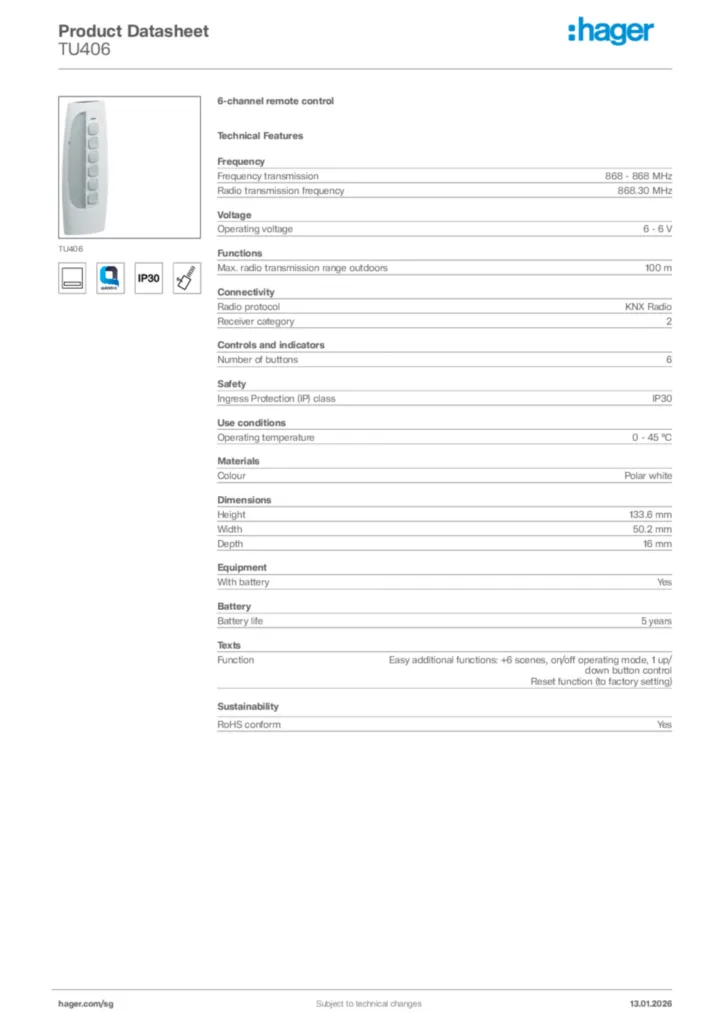

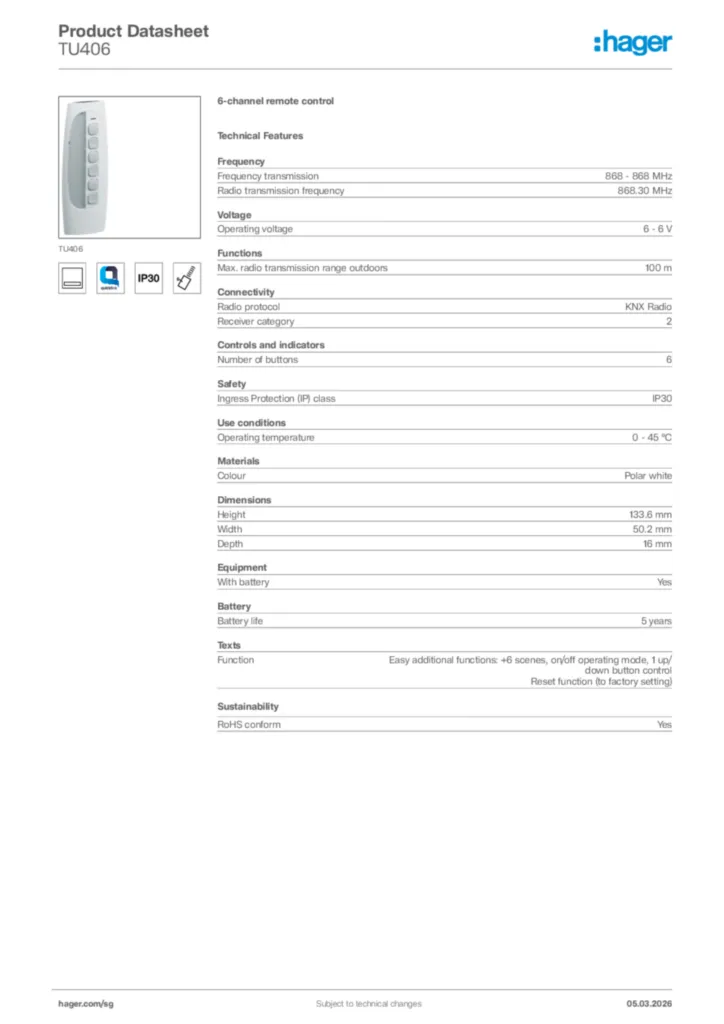

Hager Product data sheet TU406
6-channel remote control
PDF -
Operating manual
Operating manual en-GB, fr-FR, de-DE, nl-NL 2022-03-24
PDF1,90 MB -
Product attachment
Configuration guide quicklink (DE-FR-IT-NL, 2016-02)
Product attachment International 2020-01-01
PDF1,18 MB -
KNX product database
Logiciel d'application ETS du TU406
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
KNXPROD159,17 kB
Logiciel d'application ETS du TU406
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
VD5240,98 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2025-07-08
PDF117,53 kB
Declaration
Declaration of conformity International 2025-07-08
PDF124,06 kB
More documentation
