Green LED Indicator light 12/48V SVN131
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Capacity
-
Number of modules1
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated insulation voltage Ui250 V
-
Rated impulse withstand voltage Uimp2000 V
-
Rated operational voltage Ue12 - 48 V
-
Type voltage supplyAC/DC
Use conditions
-
Operating temperature-20 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Connectivity
-
Type of connectionScrew terminal
Connection
-
Cross-section flexible conductor0.75 - 6 mm²
-
Cross-section rigid conductor0.75 - 10 mm²
-
Type of lamp socketFix
Power
-
Total power loss under IN0,33 W
-
Power per charging point0
Dimensions
-
Height83 mm
-
Width17,50 mm
-
Depth62 mm
Lighting
-
Type of lampLED
Materials
-
ColourGreen
Safety
-
Ingress Protection (IP) classIP20
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

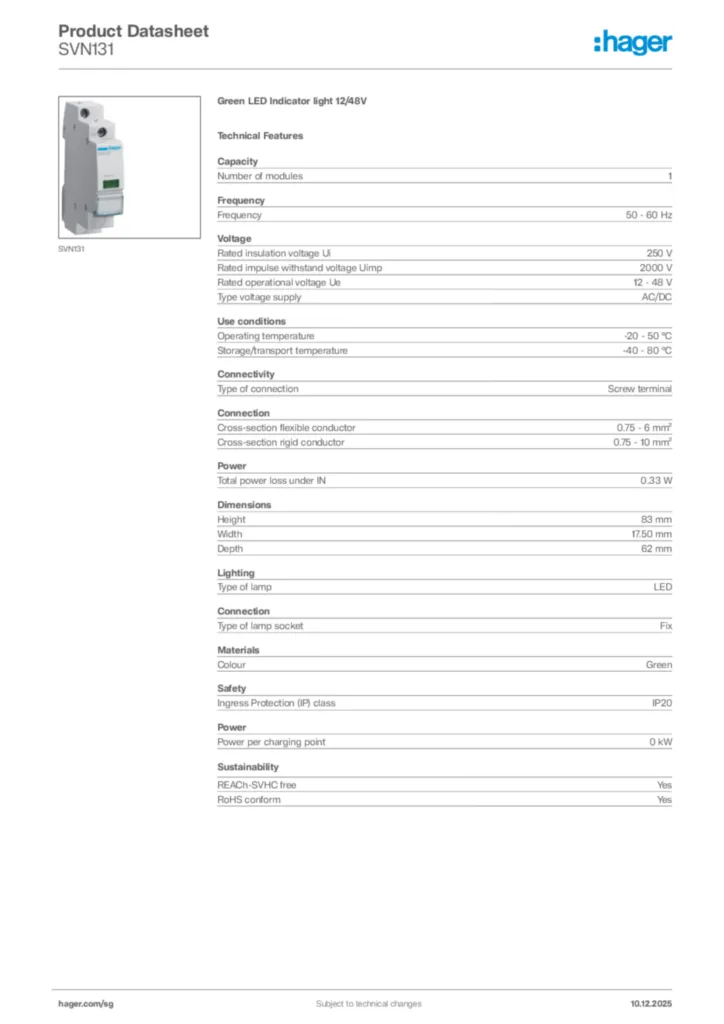

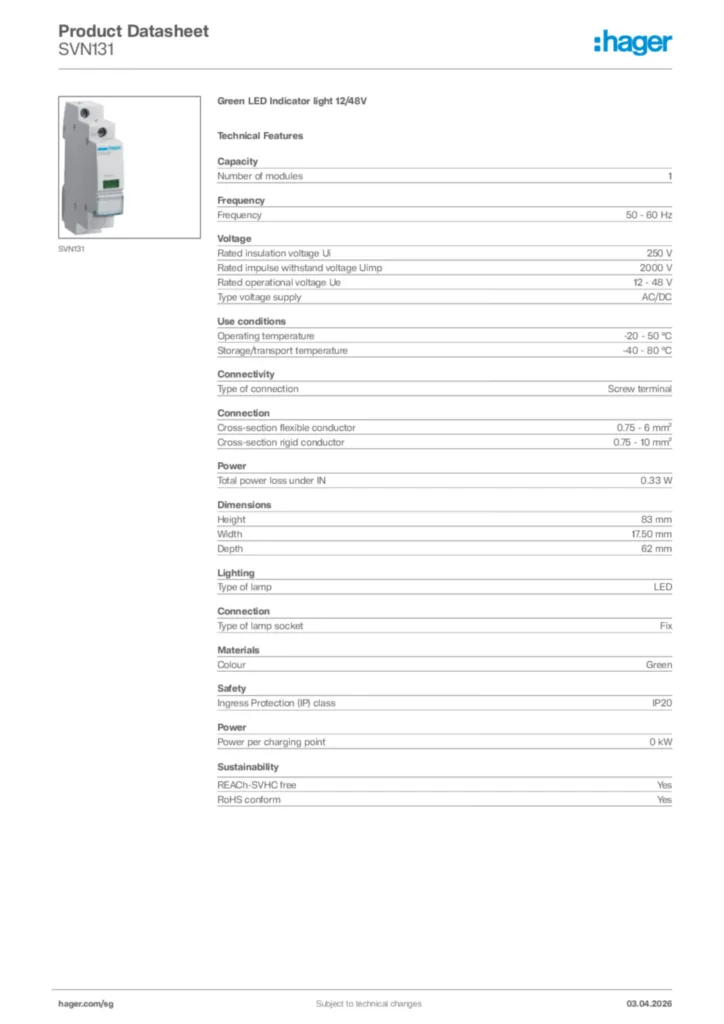

Product datasheet
Hager Product data sheet SVN131
Green LED Indicator light 12/48V
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2023-09-13
PDF574,93 kB
