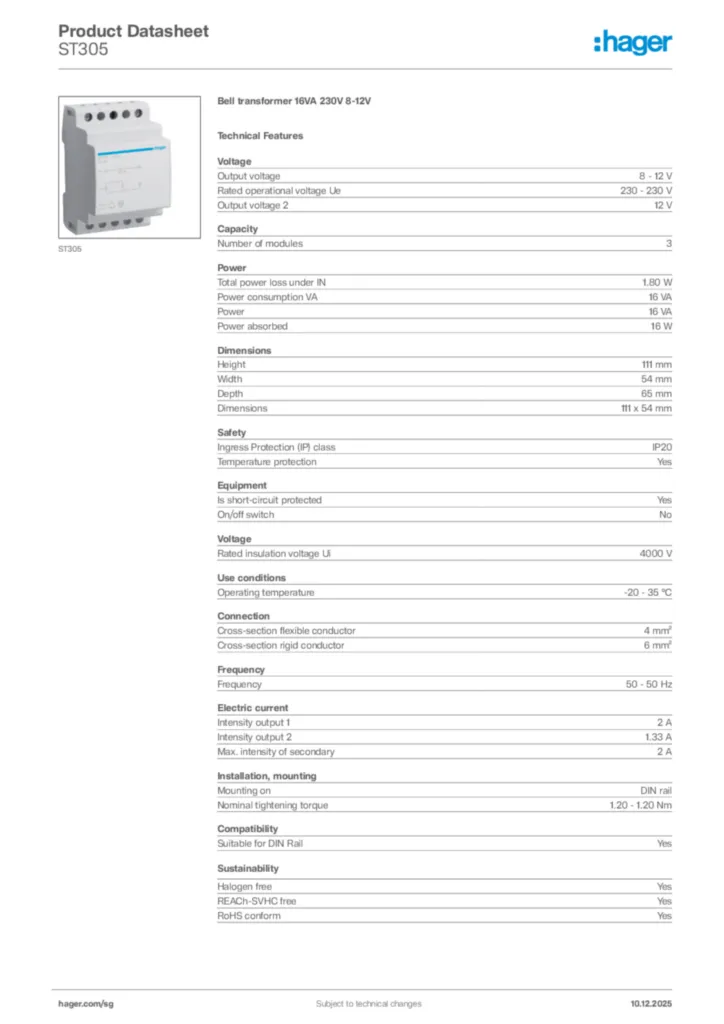

Bell transformer 16VA 230V 8-12V ST305
EAN-Nr.
3250615703057
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Stop delivery w sub Example text: This product is now obsolete. However, you can view the following products as replacements or extensions. As the functions of the replacement product are not absolutely identical, please consult your nearest Hager partner if you have any questions.
Technical characteristics
Voltage
-
Output voltage8 - 12 V
-
Rated operational voltage Ue230 - 230 V
-
Output voltage 212 V
-
Rated insulation voltage Ui4000 V
Capacity
-
Number of modules3
Power
-
Total power loss under IN1,80 W
-
Power consumption VA16 VA
-
Power16 VA
-
Power absorbed16 W
Dimensions
-
Height111 mm
-
Width54 mm
-
Depth65 mm
Safety
-
Ingress Protection (IP) classIP20
-
Temperature protectionYes
Equipment
-
Is short-circuit protectedYes
-
On/off switchNo
Use conditions
-
Operating temperature-20 - 35 °C
Connection
-
Cross-section flexible conductor4 mm²
-
Cross-section rigid conductor6 mm²
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Intensity output 12 A
-
Intensity output 21,33 A
-
Max. intensity of secondary2 A
Installation, mounting
-
Mounting onDIN rail
-
Nominal tightening torque1,20 - 1,20 Nm
Internal use only
-
Number of half modules of 17,5 mm6
Compatibility
-
Suitable for DIN RailYes
