Bar/Cable-through Current Transformer BG 413 300/5A 5VA Class 1 SRI03005
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
DIN rail adapter 1 products available
Technical characteristics
Specific identificaton attributes for Protection
-
Filter Type productPlug-in current transformer
Functions
-
Accuracy class1
Power
-
Power5 VA
-
Total power loss under IN3 W
Dimensions
-
Diameter of opening28 mm
-
Height78 mm
-
Width60 mm
-
Depth30 mm
-
Height of opening28 mm
-
Width of opening40 mm
Connectivity
-
Type of connectionScrew terminal
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated insulation voltage Ui3000 V
Use conditions
-
Operating temperature-40 - 40 °C
-
Storage/transport temperature-40 - 40 °C
Connection
-
Cross-section flexible conductor1.5 - 6 mm²
-
Cross-section rigid conductor1.5 - 6 mm²
Safety
-
Ingress Protection (IP) classIP10
Electric current
-
Max. intensity of primary300 A
-
Max. intensity of secondary5 A
Installation, mounting
-
Mounting onDIN rail, Mounting plate
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

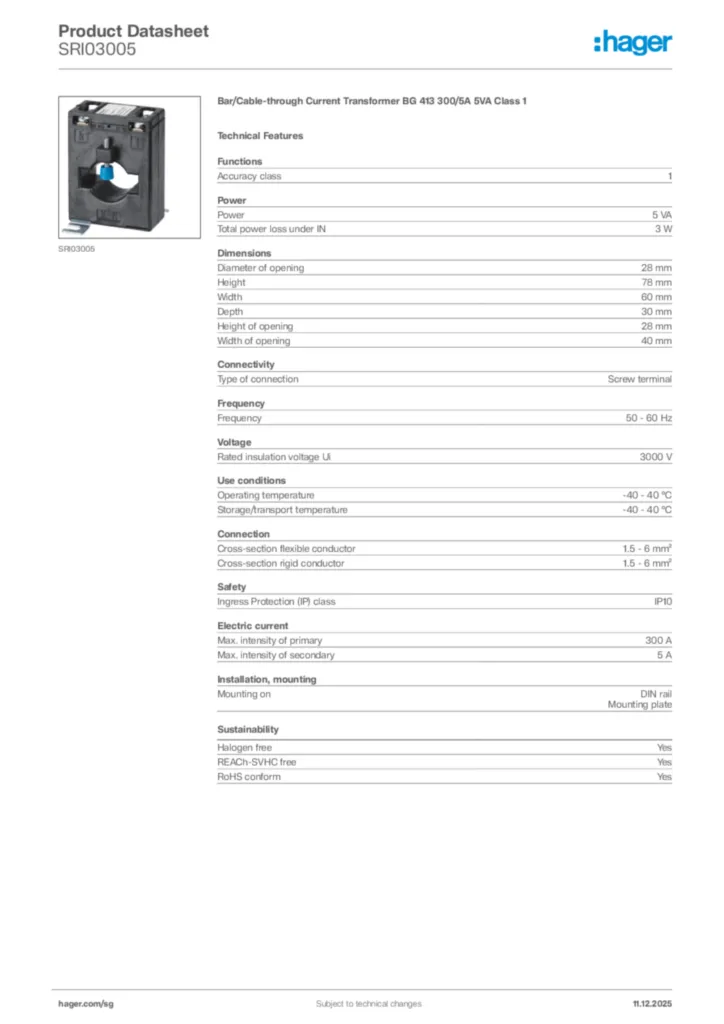

Hager Product data sheet SRI03005
Bar/Cable-through Current Transformer BG 413 300/5A 5VA Class 1
PDF -
Product data sheet
UK_MD_TDS_CurrentTransformers
Product data sheet en-GB 2024-03-22
PDF238,09 kB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB, de-DE 2023-12-11
PDF581,43 kB
