Bar/Cable-through Current Transformer BG 814 2000/5A 15VA Class 1 SRE20005
EAN-Nr.
4049857139439
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Specific identificaton attributes for Protection
-
Filter Type productPlug-in current transformer
Functions
-
Accuracy class1
Power
-
Power15 VA
-
Total power loss under IN17,50 W
Dimensions
-
Diameter of opening60 mm
-
Height122 mm
-
Width100 mm
-
Depth40 mm
-
Height of opening60 mm
-
Width of opening81 mm
Connectivity
-
Type of connectionScrew terminal
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated insulation voltage Ui3000 V
Use conditions
-
Operating temperature-40 - 40 °C
-
Storage/transport temperature-40 - 40 °C
Connection
-
Cross-section flexible conductor1.5 - 6 mm²
-
Cross-section rigid conductor1.5 - 6 mm²
Safety
-
Ingress Protection (IP) classIP10
Electric current
-
Max. intensity of primary2000 A
-
Max. intensity of secondary5 A
Installation, mounting
-
Mounting onDIN rail, Mounting plate
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

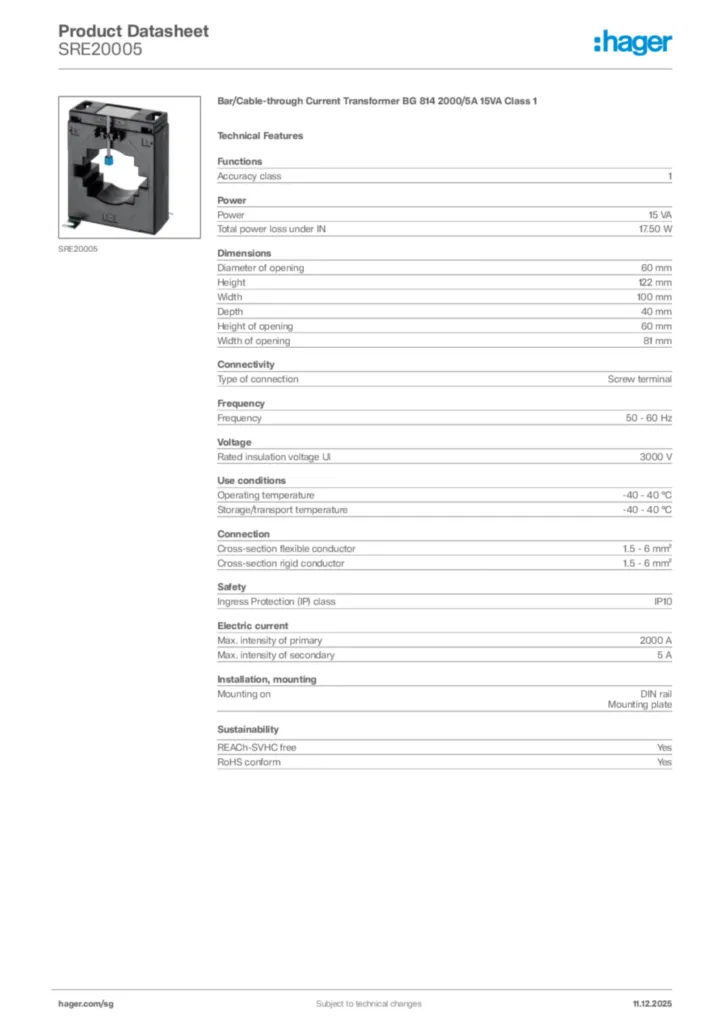

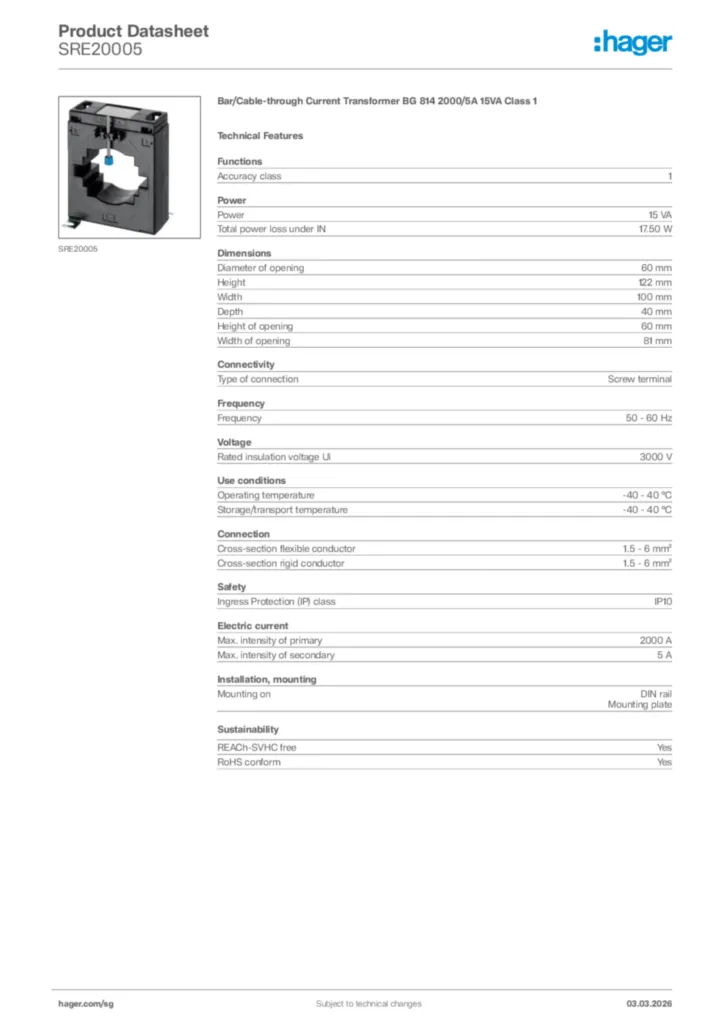

Product data sheet
