    EAN-Nr.
    3250615631503
    Packaging
    1 piece
    • Volt and ampere meters and accessories

    Analogue ammeter 0-150A indirect reading SM150

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Analogue ammeter 0-150A indirect reading

    SM150

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Capa­city
    • Number of modules
      4
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 50 °C
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      1 - 6 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 10 mm²
    Dimen­sions
    • Height
      85 mm
    • Width
      70 mm
    • Depth
      54 mm
    Meas­ure­ment
    • Current meas­ure­ment range
      0 - 150 A
    • Type of meas­uring instru­ment
      Analog
    Power
    • Power consump­tion VA
      1,10 VA
    • Total power loss under IN
      1,10 W
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Install­a­tion, mounting
    • Mounting on
      DIN rail
    Func­tions
    • Accuracy class
      0.015
    Voltage
    • Rated insu­la­tion voltage Ui
      2000 V
    Frequency
    • Frequency
      45 - 65 Hz

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration SM150
    PDF
    RoHS report SM150
    PDF

    Downloads

    • Image SM150 | Hager

      Product Image SM150

    • Product datasheet

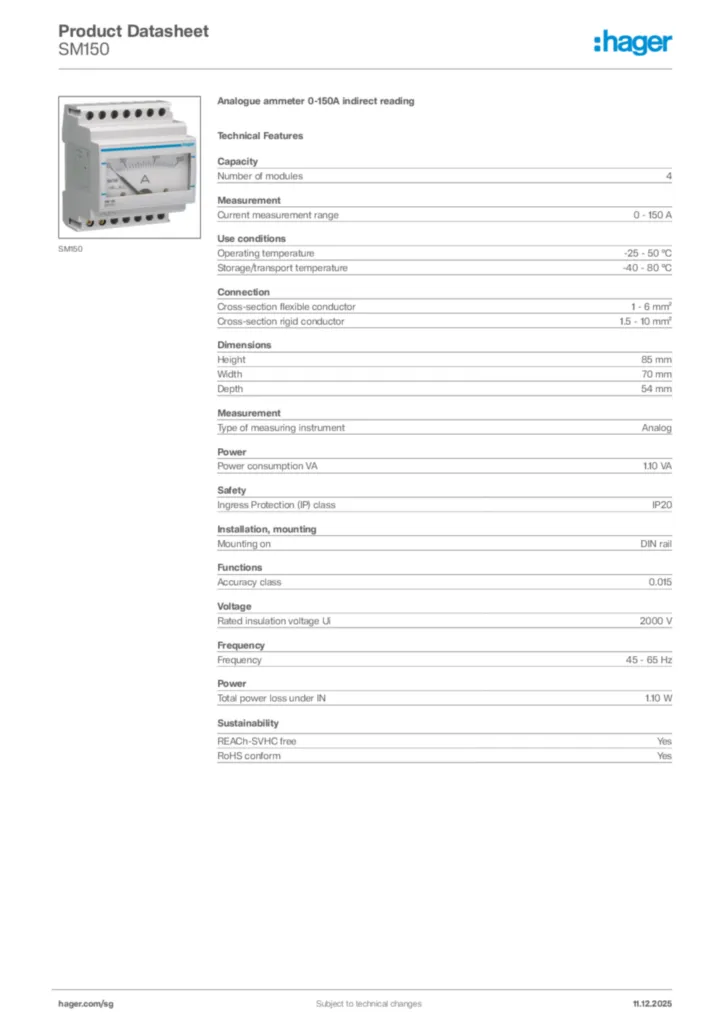

      Image Hager Product data sheet SM150 | Hager

      Hager Product data sheet SM150

      Analogue ammeter 0-150A indirect reading

      PDF

    • Product data sheet

      Image UK_MD_TDS_AnalogueVoltmereammeter | Hager

      UK_MD_TDS_AnalogueVoltmereammeter

      Product data sheet en-GB 2024-03-22

      PDF
      86,21 kB
