    • SM103E
    EAN-Nr.
    3250615639981
    Packaging
    1 piece
    • Multi­func­tion meters and accessories

    Multi-function measurement device Evolution SM103E

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Multi-function measurement device Evolution

    SM103E

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Frequency
    • Frequency
      50 - 60 Hz
    Dimen­sions
    • Height
      96 mm
    • Width
      96 mm
    • Depth
      60 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP51
    Capa­city
    • Number of modules
      5
    Use condi­tions
    • Oper­ating temper­ature
      -10 - 55 °C
    • Stor­age/trans­port temper­ature
      -20 - 80 °C
    Connectivity
    • Type of connec­tion
      Screw terminal
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      2.5 - 6 mm²
    • Cross-sec­tion rigid conductor
      2.5 - 6 mm²
    Power
    • Total power loss under IN
      10 W
    • Power consump­tion VA
      10 VA
    Equip­ment
    • Type of display
      LCD
    Meas­ure­ment
    • Frequency meas­uring range
      45 - 65 Hz
    • Type of meas­uring instru­ment
      Multi­meter
    • Current meas­ure­ment range
      0 - 9995 A
    Install­a­tion, mounting
    • Mounting on
      Flush mounting, Surface mounting

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration SM103E
    PDF
    Hager RoHS report SM103E
    PDF

    Downloads

    • Image SM103E | Hager

      Product Image SM103E

    • Product datasheet

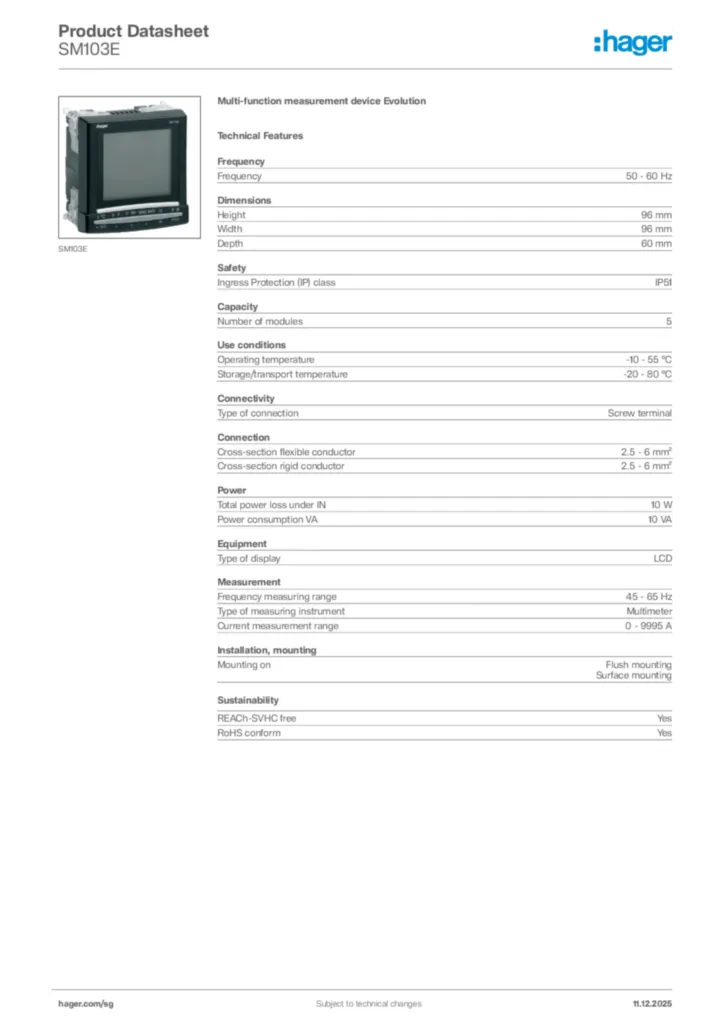

      Image Hager Product data sheet SM103E | Hager

      Hager Product data sheet SM103E

      Multi-function measurement device Evolution

      PDF

    • Installation manual

      Image Notice SM103E FR-DE-GB-IT-NL-ES-PT | Hager

      Notice SM103E FR-DE-GB-IT-NL-ES-PT

      Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pt-PT 2011-09-21

      PDF
      7,56 MB

    • Product attachment

      Image Table de communications SM103E | Hager

      Table de communications SM103E

      Product attachment International 2024-01-31

      XLS
      450,00 kB
