Reverser 2O 2F SK601
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Follow-up products :
Technical characteristics
Architecture
-
Number of poles2
-
Type of pole2P
Electric current
-
Rated current20 A
-
Rated conditional short-circuit current Icc with gl-gG fuses8 kA
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui690 V
Capacity
-
Number of modules3
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 50 Hz
Dimensions
-
Height85 mm
-
Width53 mm
-
Depth64 mm
Equipment
-
Number of NO contacts2
-
Number of NC contacts2
Use conditions
-
Operating temperature-10 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor1.5 - 10 mm²
-
Cross-section rigid conductor1 - 6 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

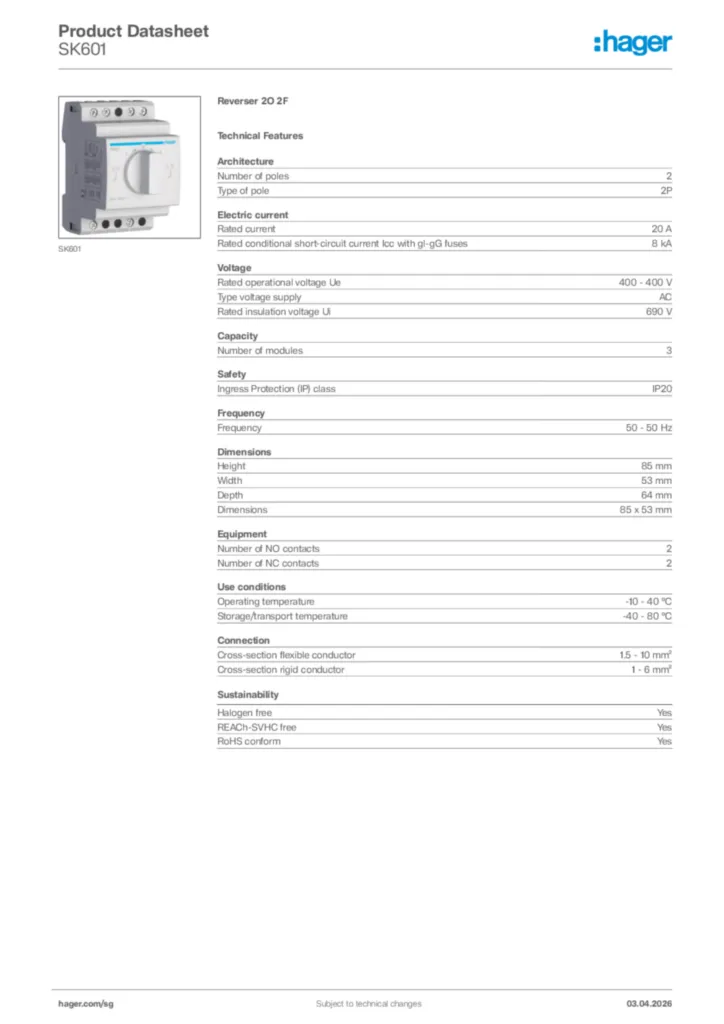

Product datasheet
Hager Product data sheet SK601
Reverser 2O 2F
PDF -
Declaration of conformity
Declaration of conformity for Inverter / Switch
Declaration of conformity International 2021-10-13
PDF133,67 kB
Declaration of conformity for Inverter / Switch
Declaration of conformity International 2019-11-04
PDF115,04 kB
