    EAN-Nr.
    3250615521392
    Packaging
    1 piece

    Switch DC 4P 1000V 32A SB432PV

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    No longer available

    Switch DC 4P 1000V 32A

    SB432PV

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Archi­tec­ture
    • Number of poles
      4
    • Type of pole
      4P
    Capa­city
    • Number of modules
      3,50
    Elec­tric current
    • Rated current
      32 A
    Voltage
    • Type voltage supply
      DC
    • Rated insu­la­tion voltage Ui
      1000 V
    • Rated oper­a­tional voltage in DC
      1000 - 1000 V
    Install­a­tion, mounting
    • Nominal tight­ening torque
      1,80 - 1,80 Nm
    Dimen­sions
    • Height
      85 mm
    • Width
      61,25 mm
    • Depth
      72 mm
    Power
    • Total power loss under IN
      6,90 W
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 65 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      3
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      4 - 10 mm²
    • Cross-sec­tion rigid conductor
      4 - 16 mm²

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration SB432PV
    PDF
    RoHS report SB432PV
    PDF

    Downloads

    • Image SB432PV | Hager

      Product Image SB432PV

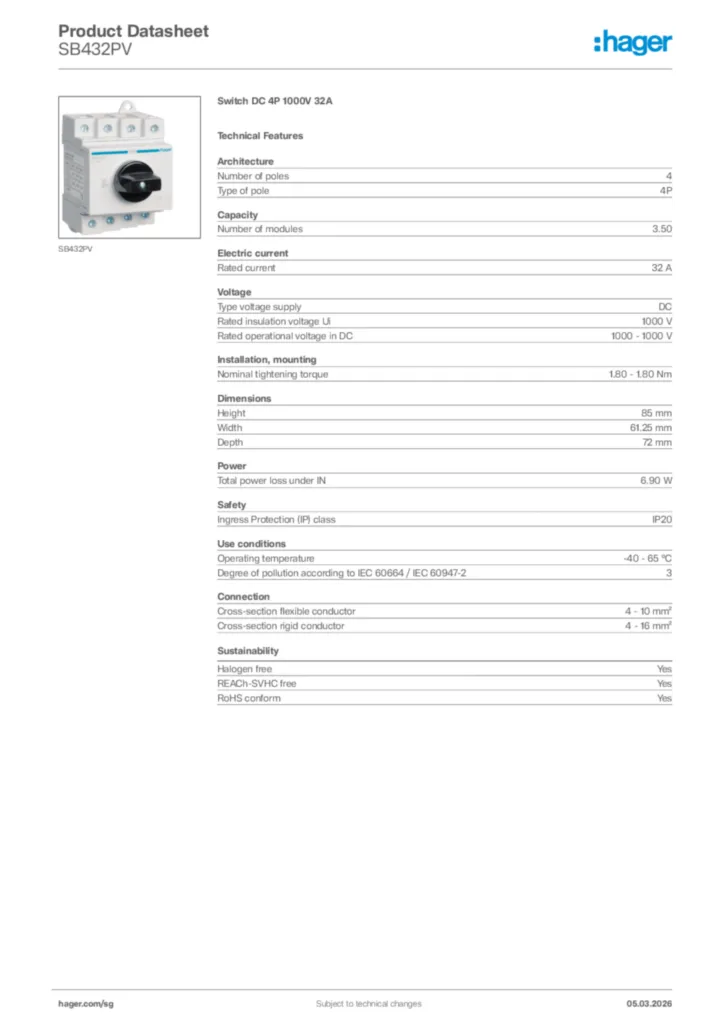

    • Product datasheet

      Image Hager Product data sheet SB432PV | Hager

      Hager Product data sheet SB432PV

      Switch DC 4P 1000V 32A

      PDF

    • Installation manual

      Image Installation manual International 2021-10-25 | Hager

      Installation manual International 2021-10-25

      PDF
      144,58 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-10-04

      PDF
      910,04 kB
      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-09-09

      PDF
      556,01 kB
