MCB 3P 10kA/15kA D-3A 3M NDN303A
EAN-Nr.
3250614619199
Packaging
4 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Under voltage coil 2 products available -
Shunt release 2 products available -
Modular phase busbar 2 products available -
Auxiliaries contact block 2 products available -
Protective cap/strip for phase busbar 1 products available
Complete your system
Technical characteristics
Electric current
-
Rated current3 A
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-215 kA
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-110 kA
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-230 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-215 kA
-
Rated current -25°C3,57 A
-
Rated current at -20°C3,52 A
-
Rated current -15°C3,47 A
-
Rated current -10°C3,42 A
-
Rated current -5°C3,37 A
-
Rated current at 0°C3,32 A
-
Rated current 5°C3,27 A
-
Rated current 10°C3,22 A
-
Rated current 15°C3,17 A
-
Rated current at 20°C3,11 A
-
Rated current 25°C3,06 A
-
Rated current 30°C3 A
-
Rated current 35°C2,93 A
-
Rated current at 40°C2,85 A
-
Rated current at 45°C2,77 A
-
Rated current at 50°C2,69 A
-
Rated current 55°C2,60 A
-
Rated current 60°C2,52 A
-
Rated current 65°C2,43 A
-
Rated current 70°C2,33 A
Architecture
-
Type of pole3P
-
CurveD
Capacity
-
Number of modules3
Installation, mounting
-
Nominal tightening torque top terminal2,80 - 2,80 Nm
-
Nominal tightening torque down terminal2,80 - 2,80 Nm
-
Nominal tightening torque2,80 - 2,80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Safety
-
Ingress Protection (IP) classIP20
-
Grid distance60 mm
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN6,60 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width52,50 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

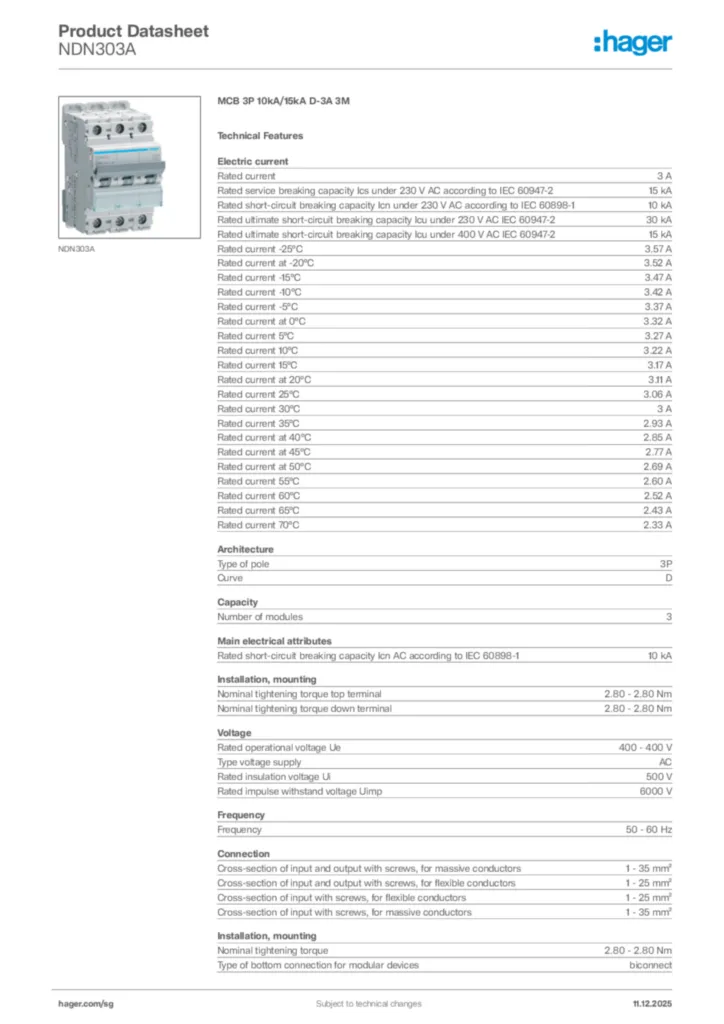

Product data sheet
