Fuse carrier 3P 25A 400V L32 3M LSN403
EAN-Nr.
3250614120039
Packaging
4 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Technical characteristics
Dimensions
-
Height76,50 mm
-
Width52,50 mm
-
Depth76,90 mm
Architecture
-
Number of poles3
Electric current
-
Rated current25 A
-
Rated current of fuse cartridge2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A, 25 A
Capacity
-
Number of modules3
Internal use only
-
Number of half modules of 17,5 mm6
Use conditions
-
Operating temperature-40 - 70 °C
Installation, mounting
-
Nominal tightening torque2,20 - 2,20 Nm
-
Mounting onDIN rail
Power
-
Total power loss under IN2,90 W
Voltage
-
Rated insulation voltage Ui690 V
-
Rated impulse withstand voltage Uimp6000 V
-
Type voltage supplyAC
-
Overvoltage category according to IEC 60947-14
Safety
-
Ingress Protection (IP) classIP2X
Connection
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 16 mm²
Fuse
-
Fuse size8.5 x 31.5
Cover, door
-
InterlockableYes
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

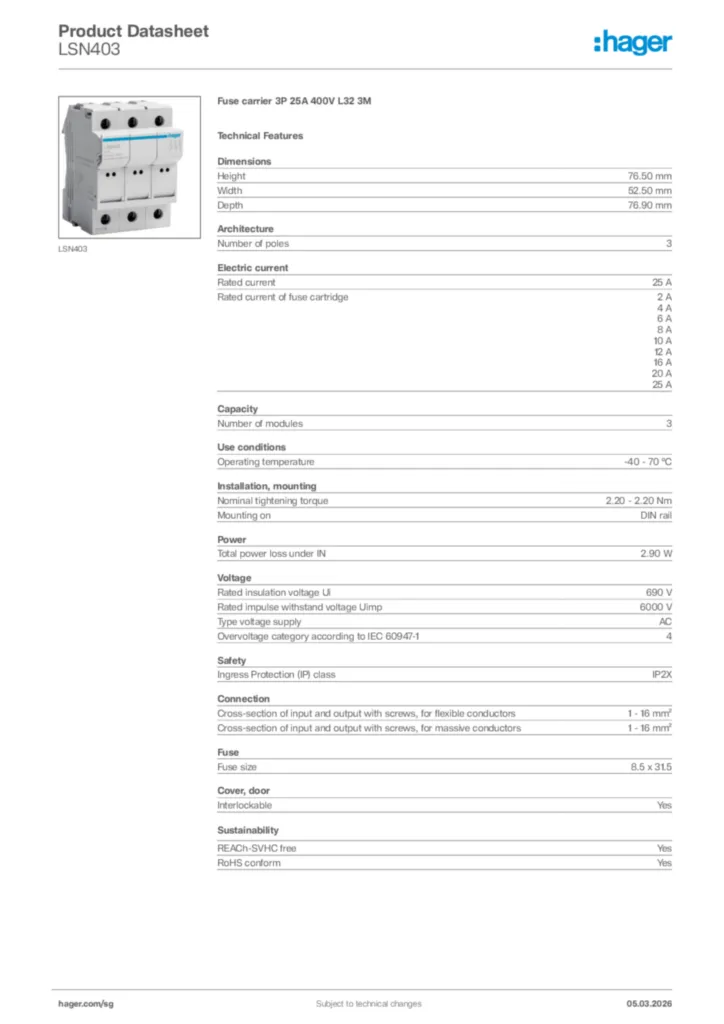

Hager Product data sheet LSN403
