Insulated busbar 1P 63A fork 10mm² 12M KDN163A
EAN-Nr.
3250613740900
Packaging
100 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Protective cap/strip for phase busbar 1 products available
Compatible products
-
Referenced by 14 products available
Referenced by
-
NDN163AMCB 1P 10kA/15kA D-63A 1M
-
NDN101AMCB 1P 10kA/15kA D-1A 1M
-
NDN106AMCB 1P 10kA/15kA D-6A 1M
-
NDN116AMCB 1P 10kA/15kA D-16A 1M
-
NDN125AMCB 1P 10kA/15kA D-25A 1M
-
NDN132AMCB 1P 10kA/15kA D-32A 1M
-
NDN150AMCB 1P 10kA/15kA D-50A 1M
-
NDN110AMCB 1P 10kA/15kA D-10A 1M
-
NDN140AMCB 1P 10kA/15kA D-40A 1M
-
NDN103AMCB 1P 10kA/15kA D-3A 1M
-
NDN104AMCB 1P 10kA/15kA D-4A 1M
-
NDN100AMCB 1P 10kA/15kA D-0.5A 1M
-
NDN102AMCB 1P 10kA/15kA D-2A 1M
-
NDN120AMCB 1P 10kA/15kA D-20A 1M
Technical characteristics
Electric current
-
Rated current63 A
Architecture
-
Number of poles1
Dimensions
-
Length210 mm
Voltage
-
Rated impulse withstand voltage Uimp4500 V
-
Rated operational voltage Ue415 - 415 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules12
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

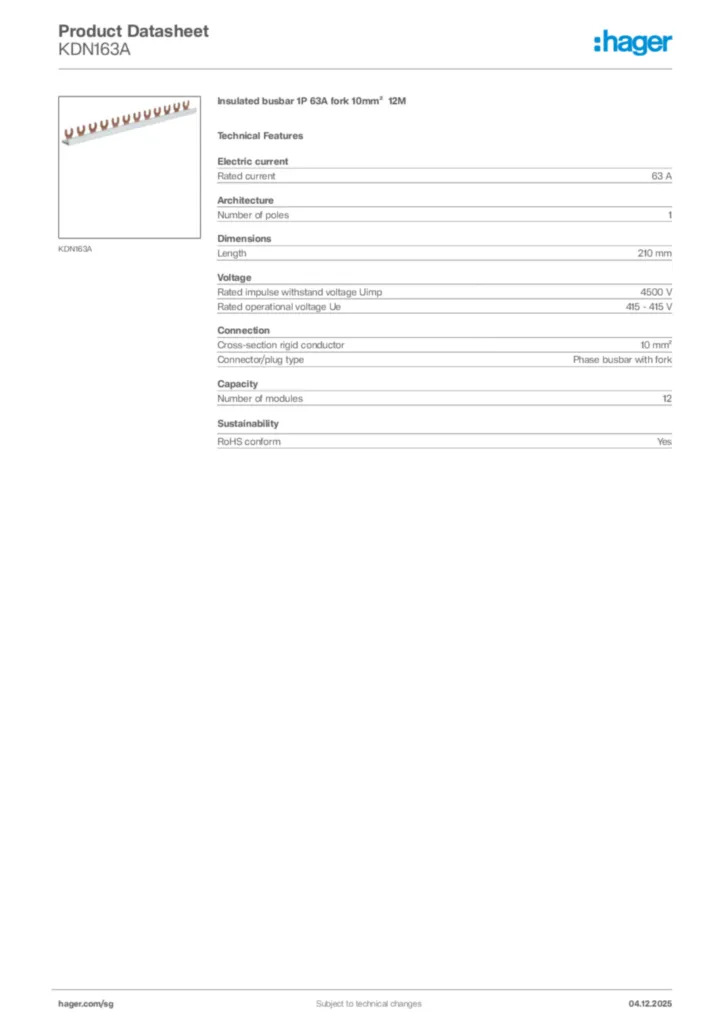

Hager Product data sheet KDN163A
