Enclosed LBS,100A,TPN,IP41 JAB310
EAN-Nr.
3250610100943
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Installation, mounting
-
Mounting onWall mounting
Architecture
-
Number of poles3
Electric current
-
Rated current100 A
Dimensions
-
Depth150 mm
-
Height250 mm
-
Width200 mm
Safety
-
Ingress Protection (IP) classIP41
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Instruction manual
Instruction manual en-GB 2022-01-18
PDF9,34 MB -
Installation manual
notice interrupteurs sectionneurs fusibles sous coffret 20_800A
Installation manual en-GB, fr-FR 2020-01-01
PDF396,77 kB -

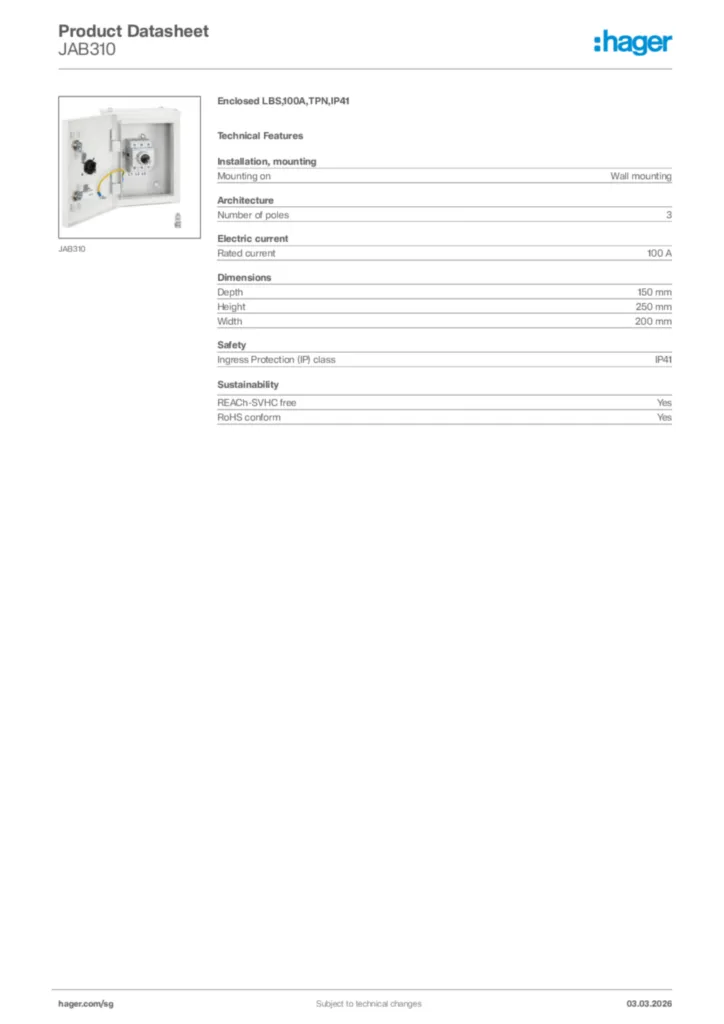

Product data sheet
UK_CD_TDS_BSEN60947-3
Product data sheet en-GB 2024-03-22
PDF55,57 kB
UK_CD_TDS_SwitchDisconnectors.pdf
Technical data sheet for switch disconnectors including characteristics.
PDF52,02 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-04-27
PDF821,00 kB
Declaration of conformity International 2023-12-20
PDF146,39 kB
Declaration of conformity International 2023-12-20
PDF153,13 kB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-05-13
PDF588,39 kB
