MCB 1P 10kA B-80A 1.5M HLE180S

Accessories
Technical characteristics
Environmental value
Documentations
More products

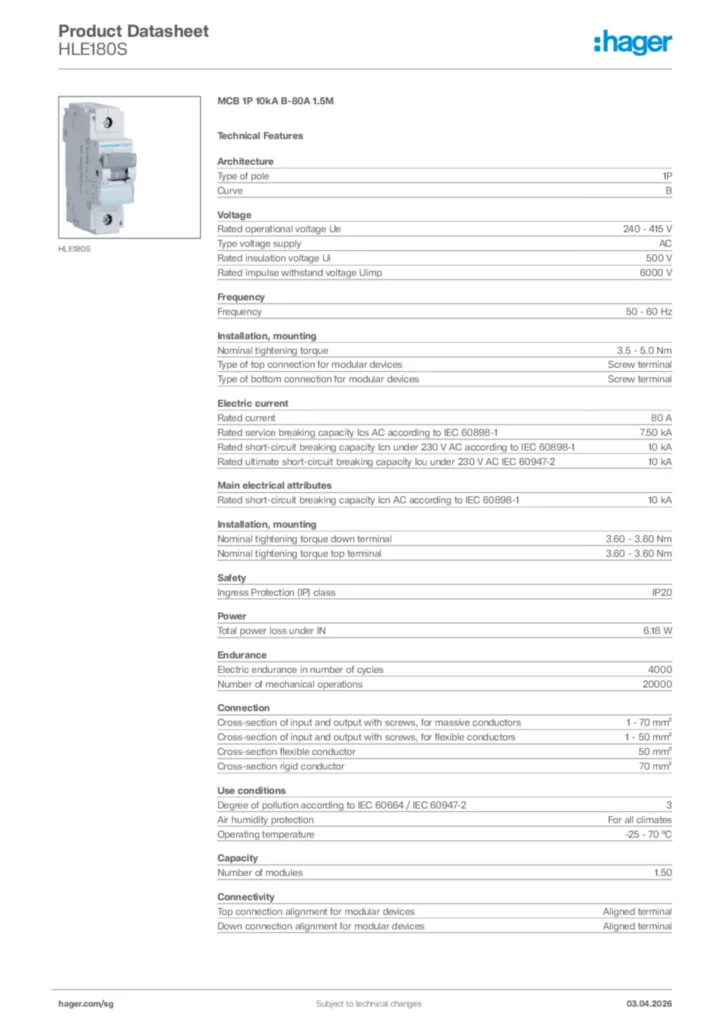

Download the sheet

Complete your system

Mechanic accessories for low-voltage components 1 products available

Technical characteristics

Type of pole

1P

Rated operational voltage Ue

240 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Nominal tightening torque

3,5 - 5,0 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal
Nominal tightening torque down terminal

3,60 - 3,60 Nm
Nominal tightening torque top terminal

3,60 - 3,60 Nm

Rated current

80 A
Rated service breaking capacity Ics AC according to IEC 60898-1

7,50 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

10 kA

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Ingress Protection (IP) class

IP20

Total power loss under IN

6,18 W

Electric endurance in number of cycles

4000
Number of mechanical operations

20000

Cross-section of input and output with screws, for massive conductors

1 - 70 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 50 mm²
Cross-section flexible conductor

50 mm²
Cross-section rigid conductor

70 mm²

Degree of pollution according to IEC 60664 / IEC 60947-2

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Number of modules

1,50

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

90 mm
Width

27 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
