Change-over switch 4P 400A w/ ext handle and bridging bars India HI456I
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary contact block 1 products available
Technical characteristics
Voltage
-
Rated operational voltage Ue380 - 690 V
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp12000 V
Electric current
-
Rated current IN400 A
-
Rated short-time withstand current Icw IEC 609478 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses50 kA
Power
-
Rated operational power under 400 V AC AC1263000 W
-
Power dissipation at IN43,20 W
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
-
Type of pole4P
Installation, mounting
-
Nominal tightening torque20 - 26 Nm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP00
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 70 °C
Connection
-
Cross-section rigid conductor185 - 240 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

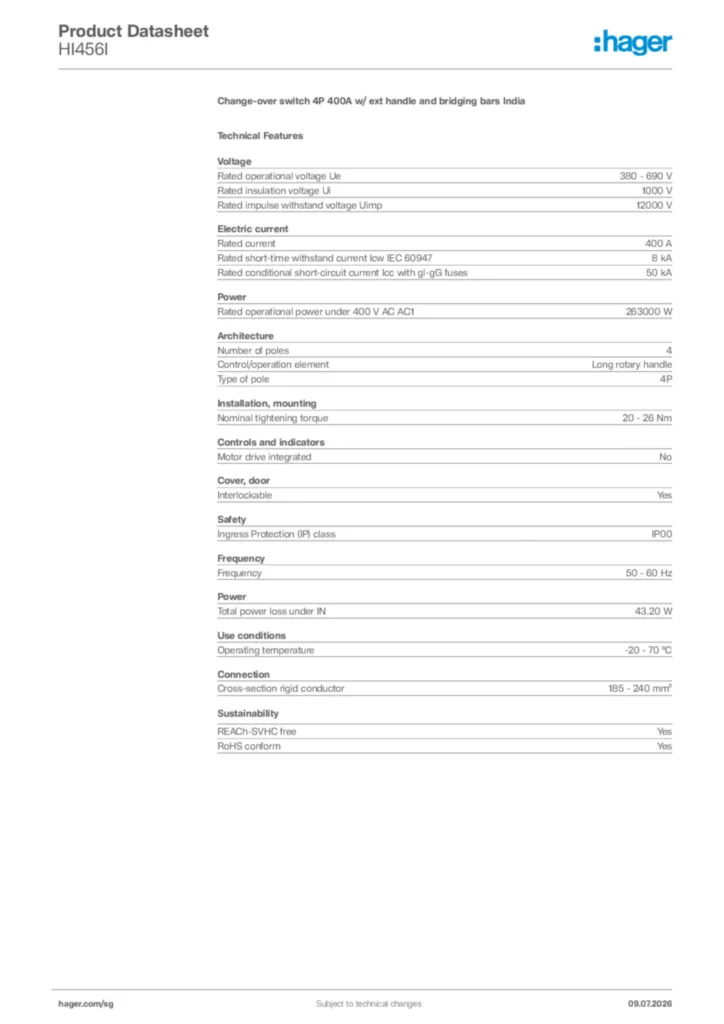

Hager Product data sheet HI456I
Change-over switch 4P 400A w/ ext handle and bridging bars India
PDF -
Installation manual
Commutateur 4P
Installation manual en-GB, fr-FR, de-DE, nl-NL, pt-PT 2020-01-01
PDF235,77 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-13
PDF573,94 kB
