Electronic earth leakage add-on block 4P 125A Idn adjustable, time delay HBA126H
EAN-Nr.
3250613121082
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Electric current
-
Rated current125 A
-
Rated residual operating current Idn30 mA, 100 mA, 300 mA, 1000 mA, 3000 mA, 6000 mA
Architecture
-
Number of poles4
Safety
-
Residual current typeA HI
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Connection
-
Cross-section of input and output with screws, for massive conductors2,5 - 95,0 mm²
-
Cross-section of input and output with screws, for flexible conductors2,5 - 70,0 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

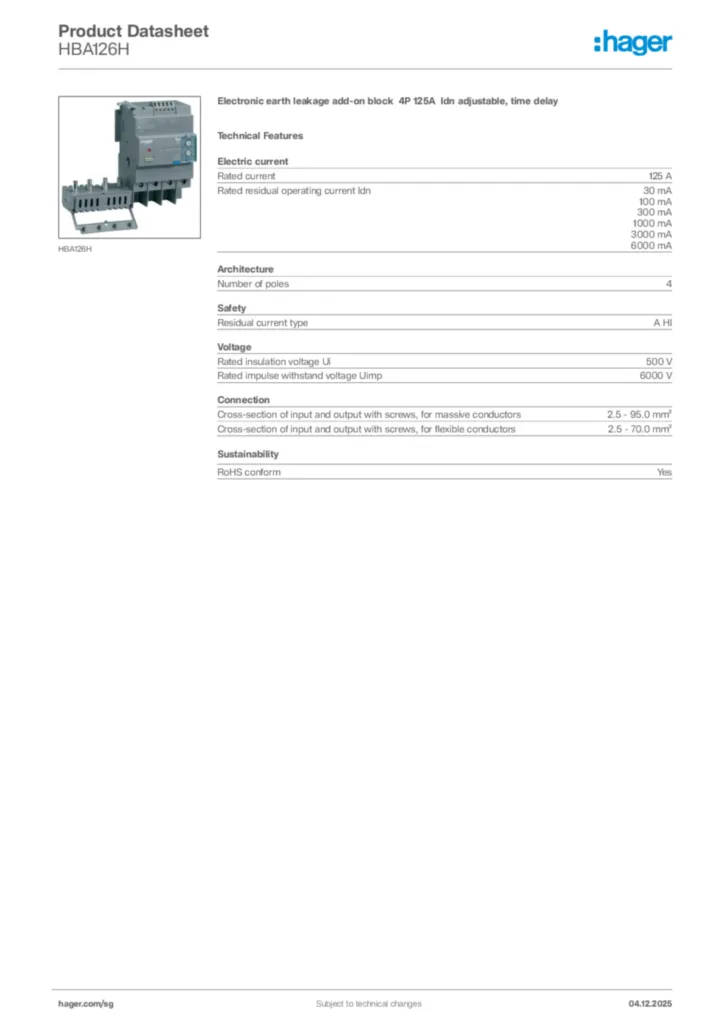

Hager Product data sheet HBA126H
Electronic earth leakage add-on block 4P 125A Idn adjustable, time delay
PDF -
Installation manual
Installation manual fr-FR, en-GB, de-DE, it-IT, es-ES, nl-NL, pt-PT, nn-NO, el-GR, pl-PL, ru-RU 2024-01-05
PDF5,77 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-08
PDF1,16 MB
