Load break switch 3P 100A HAD310
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary contact block 1 products available
Technical characteristics
Electric current
-
Rated current100 A
-
Acceptable current rating AC21100 A
-
Acceptable current rating AC21 category A100 A
-
Acceptable current rating AC21 category B100 A
-
Acceptable current rating AC23 category A100 A
-
Rated short-time withstand current Icw 1s IEC 609472,75 kA
-
Rated short-time withstand current Icw IEC 609472,75 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses25 kA
Architecture
-
Control/operation elementShort rotary handle
-
Number of poles3
Connection
-
Cross-section rigid conductor70 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8000 V
-
Rated operational voltage Ue380 - 415 V
Power
-
Power loss per pole at In4,30 W
-
Total power loss under IN12,90 W
-
Rated operational power under 400 V AC AC165000 W
-
Rated operational power under 400 V AC AC2345000 W
Installation, mounting
-
Nominal tightening torque4 - 4,4 Nm
Equipment
-
Motor drive optionalNo
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Use conditions
-
Operating temperature-20 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 50 Hz
Connectivity
-
Type of connectionScrew terminal
Functions
-
Is reversing switchNo
-
Version as emergency stop installationNo
-
Version as main switchYes
-
Version as maintenance/service switchYes
-
Version as safety switchYes
-
Version as switch disconnector compactYes
Capacity
-
Number of modules4,45
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

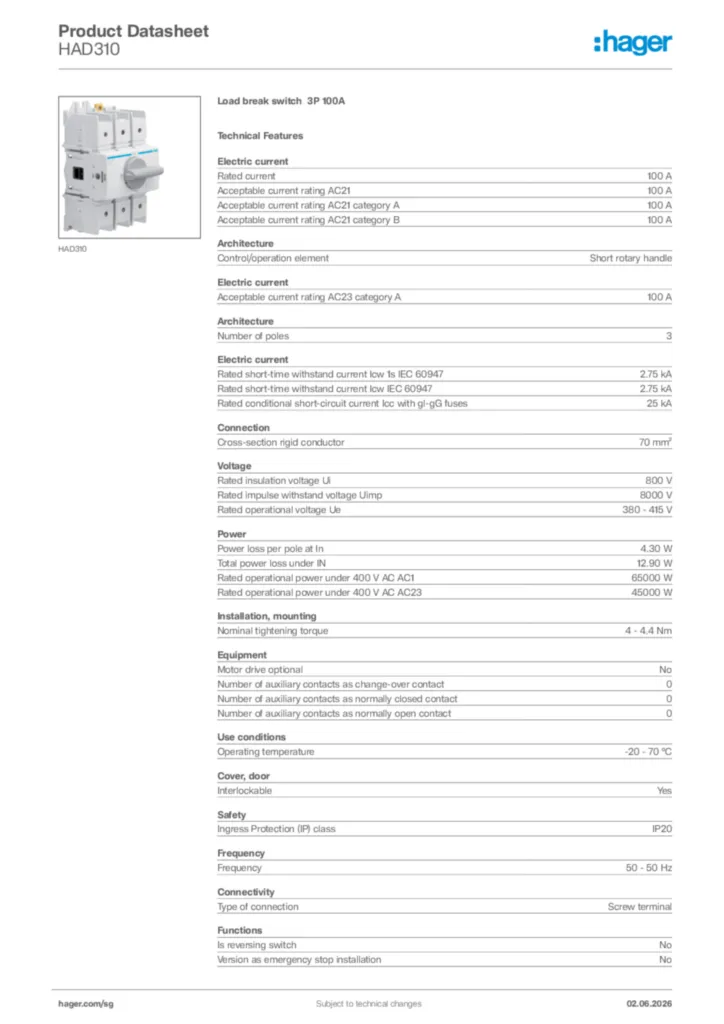

Product datasheet
