    • Home
    • Catalogue
    • Energy distri­bu­tion
    • Small distri­bu­tion boards up to 63 A
    • Mini gamma enclos­ures
    • GD110B
    EAN-Nr.
    3250612843145
    Packaging
    1 piece
    • Mini gamma enclos­ures

    Mini-enclosure, gamma, 10 module, protect. class IP30 GD110B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Mini-enclosure, gamma, 10 module, protect. class IP30

    GD110B

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Door/­op­er­ating panel 1 products available
    • Accessor­ies/s­pare parts for terminals 1 products available
    • Cover strip 2 products available

    Complete your system

    • Door/­op­er­ating panel
    • Accessor­ies/s­pare parts for terminals
    • Cover strip
    • GP110P

      Door for mini-enclosure, gamma, 10 module, white
      0.00 €  / *
    • GZ110S

      Terminal supports, gamma, for mini-enclosure, 10 module
      0.00 €  / *
    • P031F

      Cover strips, universal, for 1/2 module
      0.00 €  / *
    • P032F

      Cover strips, universal, for 1 module
      0.00 €  / *

    Technical characteristics

    Voltage
    • Nominal voltage
      230 - 400 V
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      63 A
    Equip­ment
    • Number of rails
      1
    • Number of rows
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      No
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      10
    Dimen­sions
    • Height
      180 mm
    • Width
      218 mm
    • Depth
      82 mm
    • Number of width units
      10
    Cover, door
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock
    • Glow wire test
      750 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Encl.,gamma,surface m.,26 M,version FR
    PDF
    1,48 MB
    Hager REACH declaration GD110B
    PDF
    Hager RoHS report GD110B
    PDF

    Downloads

    • Image GD110B | Hager

      Product Image GD110B

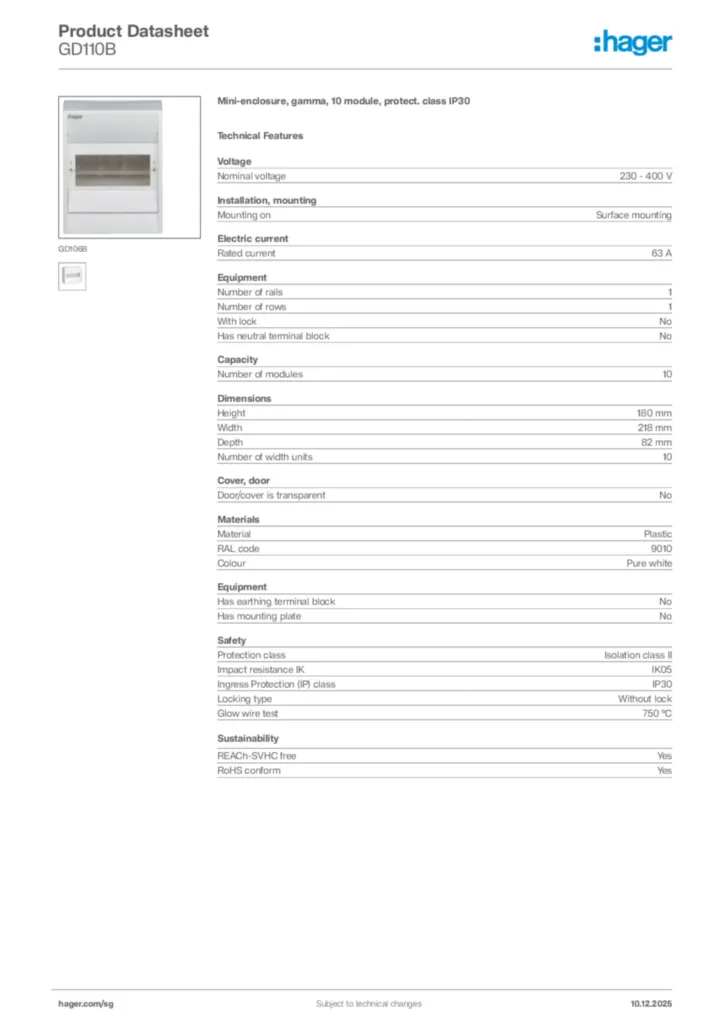

    • Product datasheet

      Image Hager Product data sheet GD110B | Hager

      Hager Product data sheet GD110B

      Mini-enclosure, gamma, 10 module, protect. class IP30

      PDF

    • Installation manual

      Image Installation manual International 2020-01-01 | Hager

      Installation manual International 2020-01-01

      PDF
      2,01 MB
      Image UK_HAGER_INS_IPRATINGS.pdf | Hager

      UK_HAGER_INS_IPRATINGS.pdf

      IP Rating Guidance

      PDF
      356,09 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-10-14

      PDF
      824,09 kB
      Image Declaration of conformity en-GB 2024-04-15 | Hager

      Declaration of conformity en-GB 2024-04-15

      PDF
      174,16 kB
    More documentation

    Spare part

    See more
