Mini-enclosure, gamma, 6 module, protect. class IP30 GD106B
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 1 products available -
Accessories/spare parts for terminals 1 products available -
Cover strip 2 products available
Technical characteristics
Voltage
-
Nominal voltage230 - 230 V
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current50 A
Equipment
-
Number of rails1
-
Number of rows1
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockNo
-
Has mounting plateNo
Capacity
-
Number of modules6
Dimensions
-
Height180 mm
-
Width146 mm
-
Depth82 mm
-
Number of width units6
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
-
Glow wire test750 °C
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

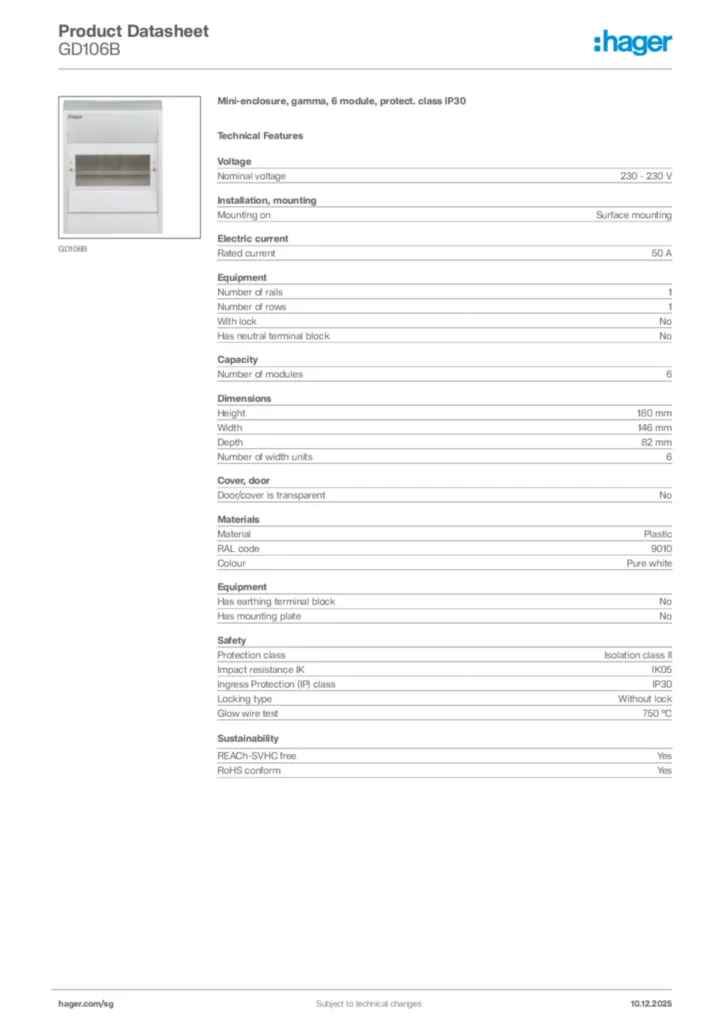

Product datasheet
Hager Product data sheet GD106B
Mini-enclosure, gamma, 6 module, protect. class IP30
PDF -
Installation manual
Installation manual International 2020-01-01
PDF2,01 MB
UK_HAGER_INS_IPRATINGS.pdf
IP Rating Guidance
PDF356,09 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-14
PDF824,09 kB
Declaration of conformity en-GB 2024-04-15
PDF174,16 kB
