    EAN-Nr.
    3250610676028
    Packaging
    1 piece
    • orion+ and orion Lite

    Polyester wall mounting enclosure, Orion.Plus, 1150x600x300 mm FL502B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Polyester wall mounting enclosure, Orion.Plus, 1150x600x300 mm

    FL502B

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Mounting accessories 3 products available
    • Insert for lock system 2 products available
    • Mounting plate for distri­bu­tion board 1 products available

    Complete your system

    • Mounting accessories
    • Insert for lock system
    • Mounting plate for distri­bu­tion board
    • FL672E

      Sliding guides, Orion.Plus, L350 mm
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL512E

      Steel mounting plate, Orion.Plus, 1080x493 mm
      0.00 €  / *

    Technical characteristics

    Dimen­sions
    • Height
      1150 mm
    • Width
      600 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      1,50 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK08
    Equip­ment
    • Number of flange plate open­ings
      0
    • Number of rows
      7
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Untreated
    • Material
      Plastic
    Cover, door
    • Number of cabinet doors
      2
    • Door/­cover is trans­parent
      Yes
    Elec­tric current
    • Rated current
      630 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FL502B
    PDF
    Hager RoHS report FL502B
    PDF

    Downloads

    • Image FL502B | Hager

      Product Image FL502B

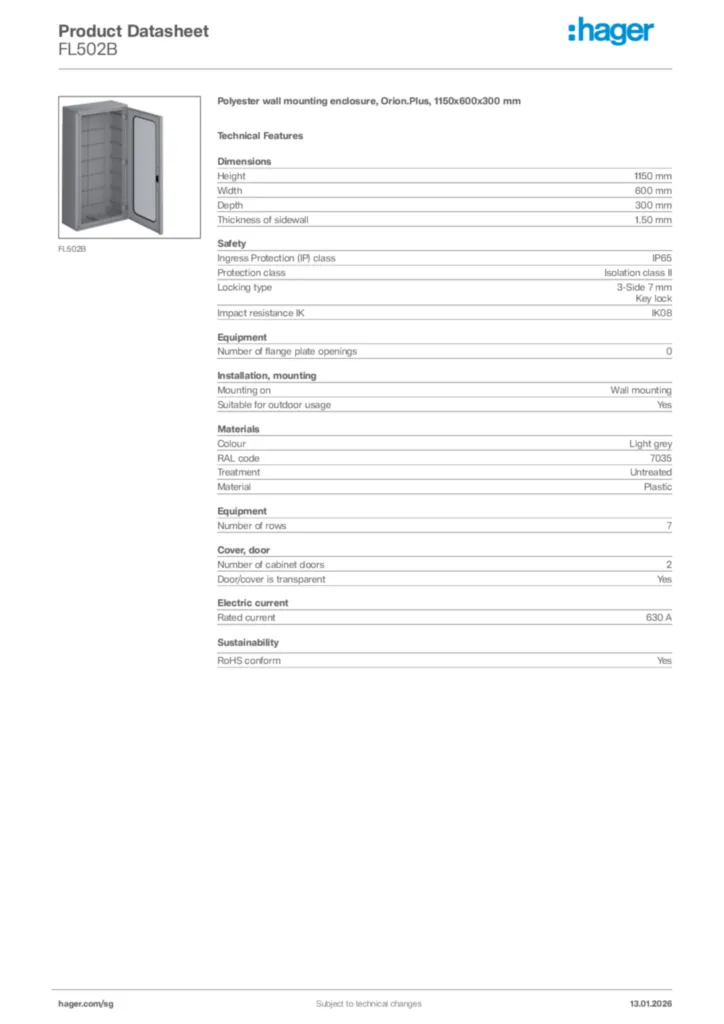

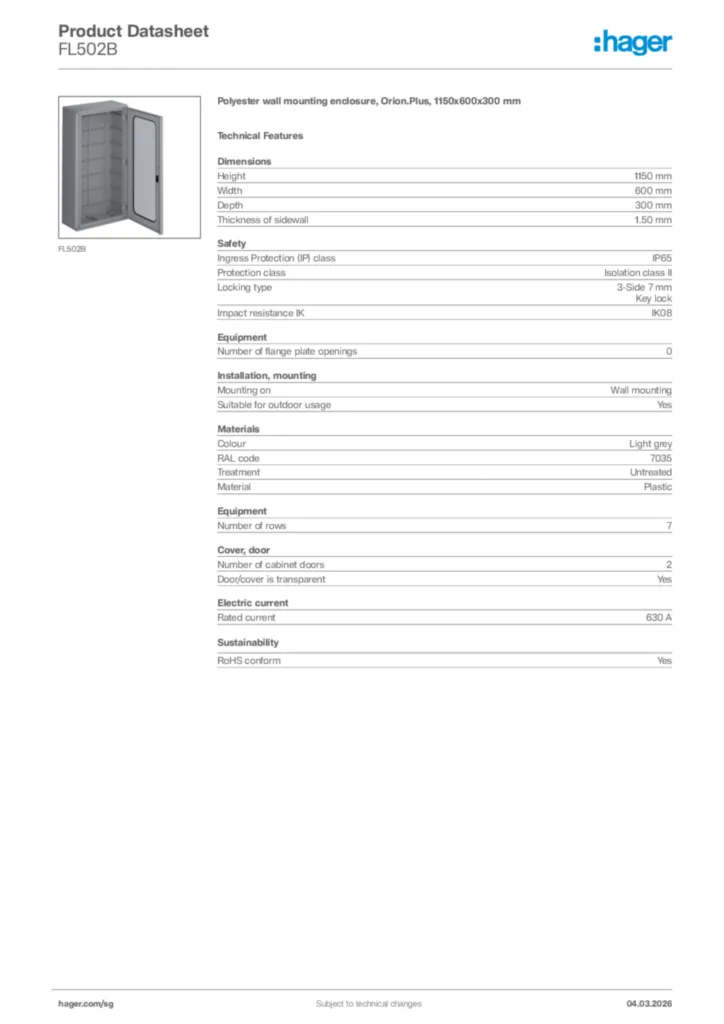

    • Product datasheet

      Image Hager Product data sheet FL502B | Hager

      Hager Product data sheet FL502B

      Polyester wall mounting enclosure, Orion.Plus, 1150x600x300 mm

      PDF
