    • Home
    • Catalogue
    • Energy distri­bu­tion
    • Distri­bu­tion boards up to 1600 A
    • orion+ and orion Lite
    • FL354B
    EAN-Nr.
    3250610672600
    Packaging
    1 piece
    • orion+ and orion Lite

    Polyester double enclosure, Orion.Plus, plain door 1750x850x300 mm FL354B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Polyester double enclosure, Orion.Plus, plain door 1750x850x300 mm

    FL354B

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Cover strip 1 products available
    • Blanking plate for enclosure 1 products available
    • Mounting accessories 3 products available
    • Insert for lock system 2 products available
    • Mounting plate for distri­bu­tion board 4 products available

    Complete your system

    • Cover strip
    • Blanking plate for enclosure
    • Mounting accessories
    • Insert for lock system
    • Mounting plate for distri­bu­tion board
    • FL871Z

      Blanking strips 4 Mod, Quadro.Plus, 6 pieces
      0.00 €  / *
    • FL715E

      Insulated front panel, Orion.Plus, 150x800 mm
      0.00 €  / *
    • FL672E

      Sliding guides, Orion.Plus, L350 mm
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL520E

      Steel mounting plate, Orion.Plus, 480x743 mm
      0.00 €  / *
    • FL522E

      Steel mounting plate, Orion.Plus, 1080x743 mm
      0.00 €  / *
    • FL407A

      Steel mounting plate, Orion.Plus, 480x243 mm
      0.00 €  / *
    • FL502E

      Steel mounting plate, Orion.Plus, 1080x243 mm
      0.00 €  / *

    Technical characteristics

    Dimen­sions
    • Height
      1750 mm
    • Width
      850 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      2 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      Barrel lock, Key lock
    • Impact resist­ance IK
      IK08
    Equip­ment
    • Number of section in width
      1
    • Number of flange plate open­ings
      0
    • Number of rows
      10
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Untreated
    • Material
      Glass rein­forced poly­ester
    Cover, door
    • Number of cabinet doors
      0
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      630 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FL354B
    PDF
    Hager RoHS report FL354B
    PDF

    Downloads

    • Image FL354B | Hager

      Product Image FL354B

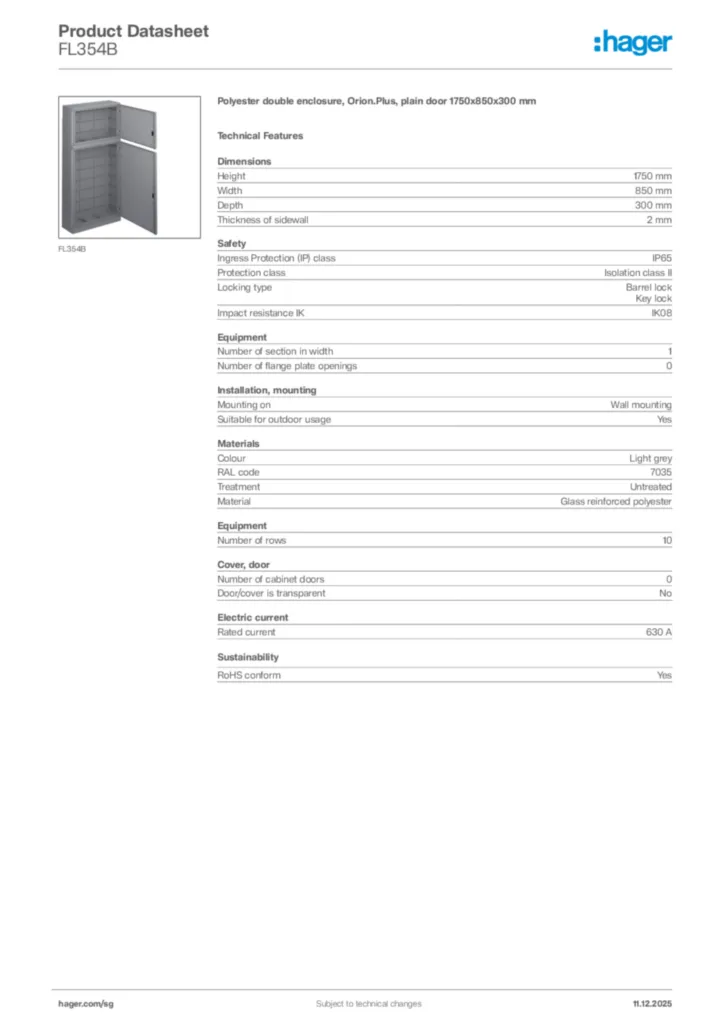

    • Product datasheet

      Image Hager Product data sheet FL354B | Hager

      Hager Product data sheet FL354B

      Polyester double enclosure, Orion.Plus, plain door 1750x850x300 mm

      PDF
    More documentation

    Discover our other products of this range

      5
    • 1
      FL863Z - Wall ins. fixing brackets, Orion.Plus polyester
      FL863Z
      Wall ins. fixing brackets, Orion.Plus polyester
    • 2
      FL980A - Chassis kit MCB, orion plus 2x24M 350x300 mm +S
      FL980A
      Chassis kit MCB, orion plus 2x24M 350x300 mm +S
    • 3
      FL962A - Plinth, Orion.Plus, H150 800x300 mm
      FL962A
      Plinth, Orion.Plus, H150 800x300 mm
    • 4
      FL958A - Plinth, Orion.Plus, H150 500x250 mm
      FL958A
      Plinth, Orion.Plus, H150 500x250 mm
    • 5
      UC969 - Clips nut and screws, quadro.system, M5
      UC969
      Clips nut and screws, quadro.system, M5
