    • Home
    • Catalogue
    • Energy distri­bu­tion
    • Distri­bu­tion boards up to 1600 A
    • orion+ and orion Lite
    • FL152A
    EAN-Nr.
    3250610670644
    Packaging
    1 piece
    • orion+ and orion Lite

    Steel enclosure, Orion.Plus, glazed door 300x250x160 mm FL152A

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Steel enclosure, Orion.Plus, glazed door 300x250x160 mm

    FL152A

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Cover strip 1 products available
    • Lock system 4 products available
    • Mounting accessories 3 products available
    • Accessor­ies/s­pare parts for earthing and light­ning 1 products available
    • Insert for lock system 3 products available
    • Mounting plate for distri­bu­tion board 2 products available

    Complete your system

    • Cover strip
    • Lock system
    • Mounting accessories
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Insert for lock system
    • Mounting plate for distri­bu­tion board
    • FL871Z

      Blanking strips 4 Mod, Quadro.Plus, 6 pieces
      0.00 €  / *
    • FL96Z

      Triangular lock plus handle, Orion.Plus
      0.00 €  / *
    • FL95Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL93Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL80Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • UC969

      Clips nut and screws, quadro.system, M5
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL874A

      Ground wire kit, Orion.Plus
      0.00 €  / *
    • FL97Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL472A

      Steel mounting plate, Orion.Plus, 280x193 mm
      0.00 €  / *
    • FL402A

      Steel mounting plate, Orion.Plus, 280x193 mm
      0.00 €  / *

    Technical characteristics

    Dimen­sions
    • Height
      300 mm
    • Width
      250 mm
    • Depth
      160 mm
    • Thick­ness of side­wall
      1,20 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of flange plate open­ings
      2
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      Yes
    Elec­tric current
    • Rated current
      250 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FL152A
    PDF
    Hager RoHS report FL152A
    PDF

    Downloads

    • Image FL152A | Hager

      Product Image FL152A

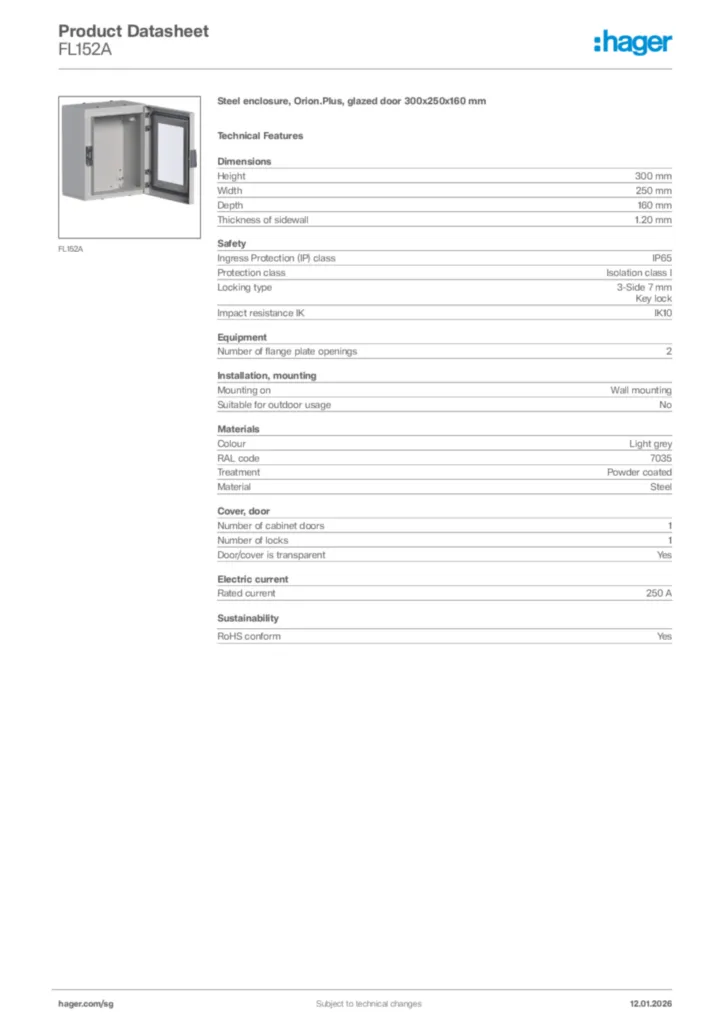

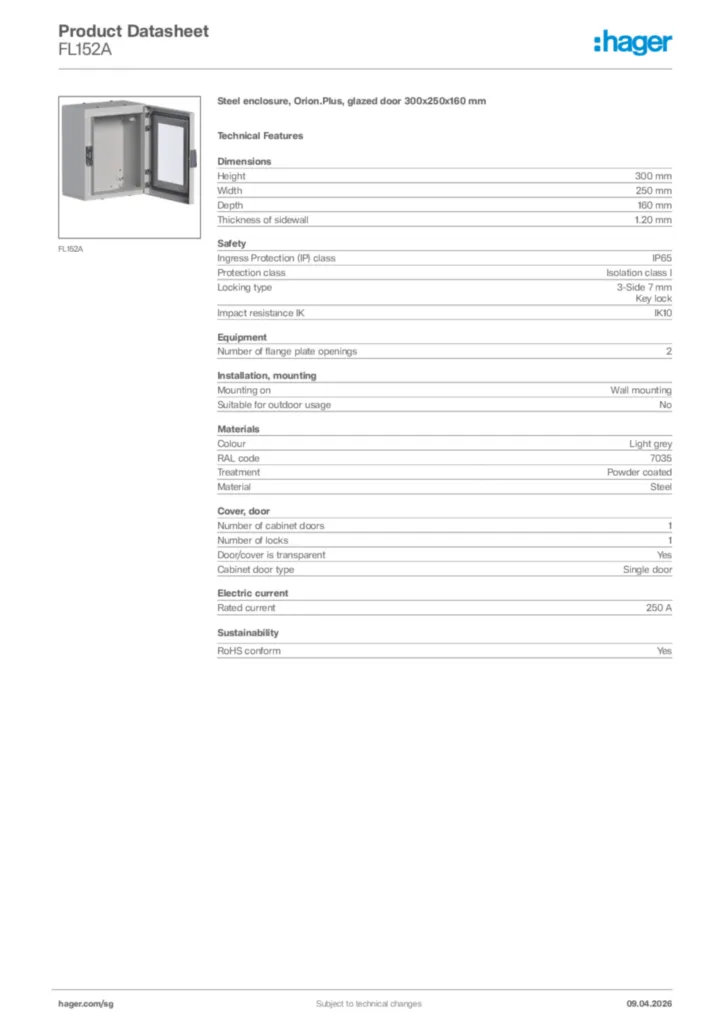

    • Product datasheet

      Image Hager Product data sheet FL152A | Hager

      Hager Product data sheet FL152A

      Steel enclosure, Orion.Plus, glazed door 300x250x160 mm

      PDF

    • Installation manual

      Image Instruction sheet | Hager

      Instruction sheet

      Installation manual International 2020-11-10

      PDF
      32,87 MB
    More documentation
