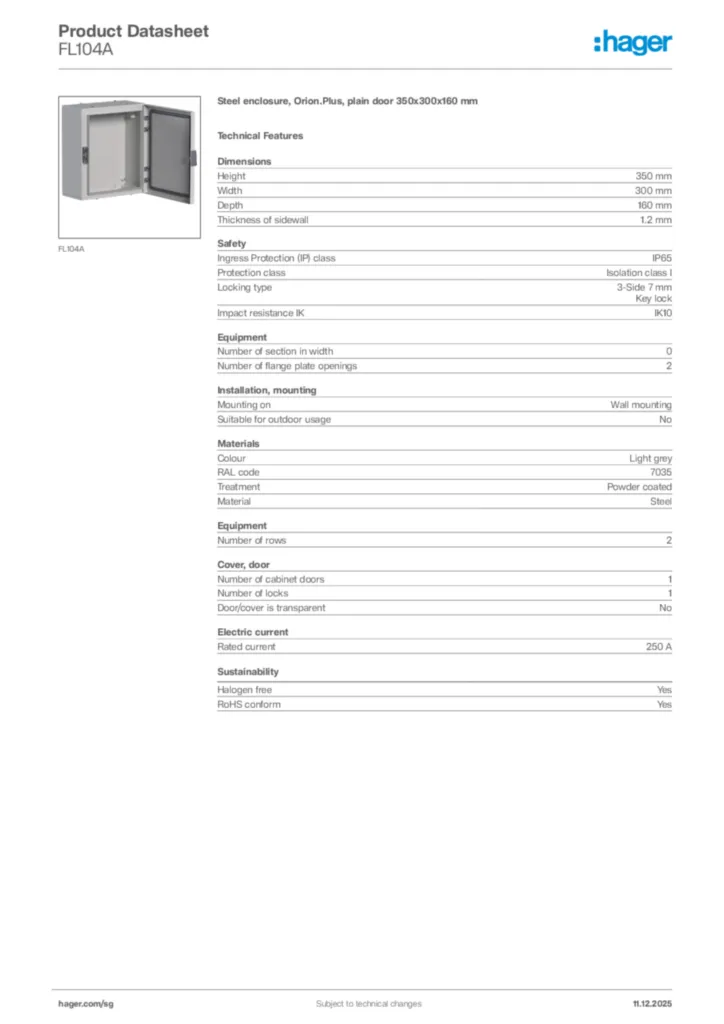

Steel enclosure, Orion.Plus, plain door 350x300x160 mm FL104A

EAN-Nr.
3250610670446
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Steel enclosure, Orion.Plus, plain door 350x300x160 mm

FL104A

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

Complete your system

Optional accessories

  • See more (17)
    • Insert for lock system 3 products available
    • Slotted cable duct system 2 products available
    • Mounting plate for distri­bu­tion board 2 products available
    • Distrib­utor assembly for serial built-in device 1 products available
    • Lock system 4 products available
    • Cover strip 1 products available

    Complete your system

    • Insert for lock system
    • Slotted cable duct system
    • Mounting plate for distri­bu­tion board
    • Distrib­utor assembly for serial built-in device
    • Lock system
    • Cover strip
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Mounting accessories
    • FL97Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL71Z

      Cable trunking 40x60mm 2xL2000mm
      0.00 €  / *
    • FL70Z

      Cable trunking 25x60mm 2xL2000mm
      0.00 €  / *
    • FL473A

      Steel mounting plate, Orion.Plus, 330x243 mm
      0.00 €  / *
    • FL404A

      Steel mounting plate, Orion.Plus, 330x243 mm
      0.00 €  / *
    • FL980A

      Chassis kit MCB, orion plus 2x24M 350x300 mm +S
      0.00 €  / *
    • FL96Z

      Triangular lock plus handle, Orion.Plus
      0.00 €  / *
    • FL95Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL93Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL80Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL871Z

      Blanking strips 4 Mod, Quadro.Plus, 6 pieces
      0.00 €  / *
    • FL874A

      Ground wire kit, Orion.Plus
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • UC969

      Clips nut and screws, quadro.system, M5
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *

    Technical characteristics

    Dimen­sions
    • Height
      350 mm
    • Width
      300 mm
    • Depth
      160 mm
    • Thick­ness of side­wall
      1,2 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      0
    • Number of flange plate open­ings
      2
    • Number of rows
      2
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      250 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    PEP - Steel enclosure, Orion.Plus, plain door 650x500x200 mm (english)
    PDF
    3,44 MB
    Hager REACH declaration FL104A
    PDF
    Hager RoHS report FL104A
    PDF

    Downloads

    • Image FL104A | Hager

      Product Image FL104A

    • Installation manual

      Image Installation manual International 2023-02-16 | Hager

      Installation manual International 2023-02-16

      PDF
      32,87 MB
      Image Instruction sheet | Hager

      Instruction sheet

      Installation manual International 2020-11-10

      PDF
      32,87 MB

    • Declaration of conformity

      Image EU Declaration of Conformity_24.3441.06.24 | Hager

      EU Declaration of Conformity_24.3441.06.24

      Declaration of conformity en-GB 2024-06-26

      PDF
      254,37 kB
      Image UKCA Declaration of Conformity_24.3313.06.24 | Hager

      UKCA Declaration of Conformity_24.3313.06.24

      Declaration of conformity en-US 2024-06-26

      PDF
      259,47 kB
