    • EGN103
    EAN-Nr.
    3250618502435
    Packaging
    1 piece
    • Time switch analogue - digital

    1 channel digital time switch weekly cycle EGN103

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    1 channel digital time switch weekly cycle

    EGN103

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for time switches 2 products available

    Complete your system

    • Accessor­ies/s­pare parts for time switches
    • EG005

      Programming key for time switches
      0.00 €  / *
    • EGN003

      Programming Bluetooth key for EGN103
      0.00 €  / *

    Technical characteristics

    Voltage
    • Nominal voltage
      230 - 230 V
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • 230 V incan­des­cent and halogen lamp
      2300 W
    Lighting
    • Max. load fluor­es­cent lamp in series
      1000 W
    • Max. load fluor­es­cent lamp parallel compensated
      400 VA
    Func­tions
    • Power reserve in years
      5 y
    • With network synchron­isa­tion
      No
    • With quartz synchron­isa­tion
      Yes
    • Number of func­tion chan­nels
      1
    Equip­ment
    • Accuracy per day
      1,50 s
    • With impulse programme
      No
    • Number of chan­nels
      1
    Connec­tion
    • Type of contacts
      1x changeover
    • Cross-sec­tion flex­ible conductor
      1 - 6 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 10 mm²
    Settings
    • Daily programme
      Yes
    • Weekly programme
      Yes
    • Annual programme
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - +45 °C
    Texts
    • Type of connec­tion
      With screw terminal
    Dimen­sions
    • Height
      85 mm
    • Width
      35,80 mm
    • Depth
      61,60 mm
    Capa­city
    • Number of modules
      2
    Main elec­trical attrib­utes
    • Minimum interval between 2 switching times
      1 min

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Time switch Multi-function 1 channel bluetooth, wall mounted cell
    PDF
    875,51 kB
    REACH declaration EGN103
    PDF
    RoHS report EGN103
    PDF

    Downloads

    • Image EGN103 | Hager

      Product Image EGN103

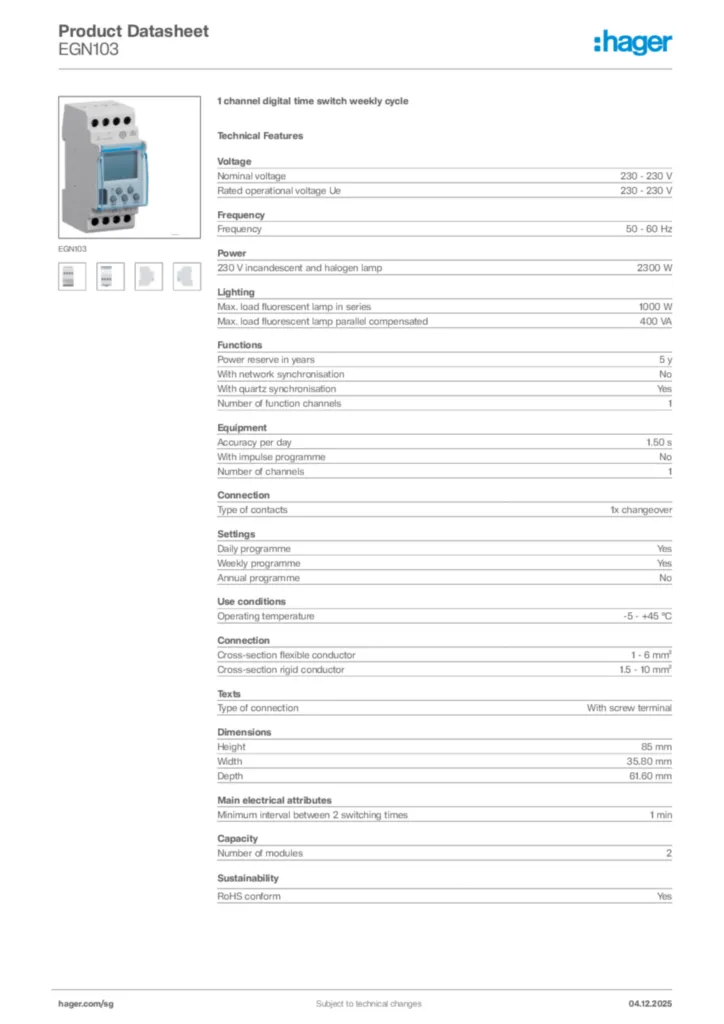

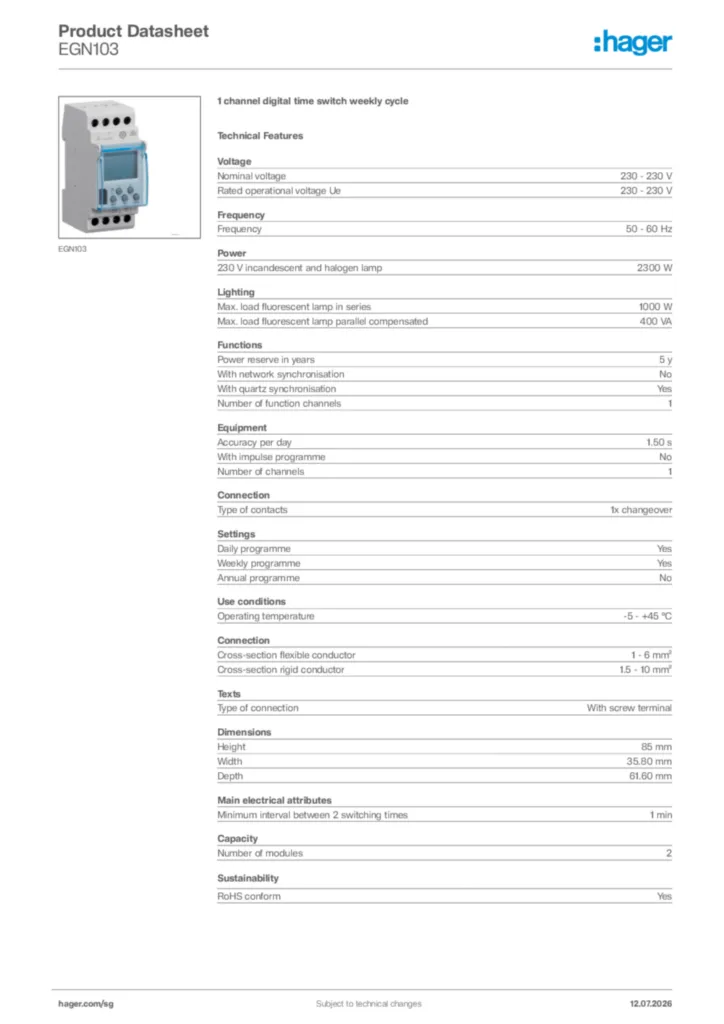

    • Product datasheet

      Image Hager Product data sheet EGN103 | Hager

      Hager Product data sheet EGN103

      1 channel digital time switch weekly cycle

      PDF

    • Installation manual

      Image Instruction manual EGN103 (EN) | Hager

      Instruction manual EGN103 (EN)

      Installation manual en-GB 2019-02-08

      PDF
      1,28 MB

    • Manual

      Image Manual en-GB 2020-11-24 | Hager

      Manual en-GB 2020-11-24

      PDF
      1,28 MB

    • Declaration of conformity

      Image Declaration of conformity International 2023-01-12 | Hager

      Declaration of conformity International 2023-01-12

      PDF
      234,58 kB
      Image Declaration of conformity International 2023-01-12 | Hager

      Declaration of conformity International 2023-01-12

      PDF
      305,69 kB
