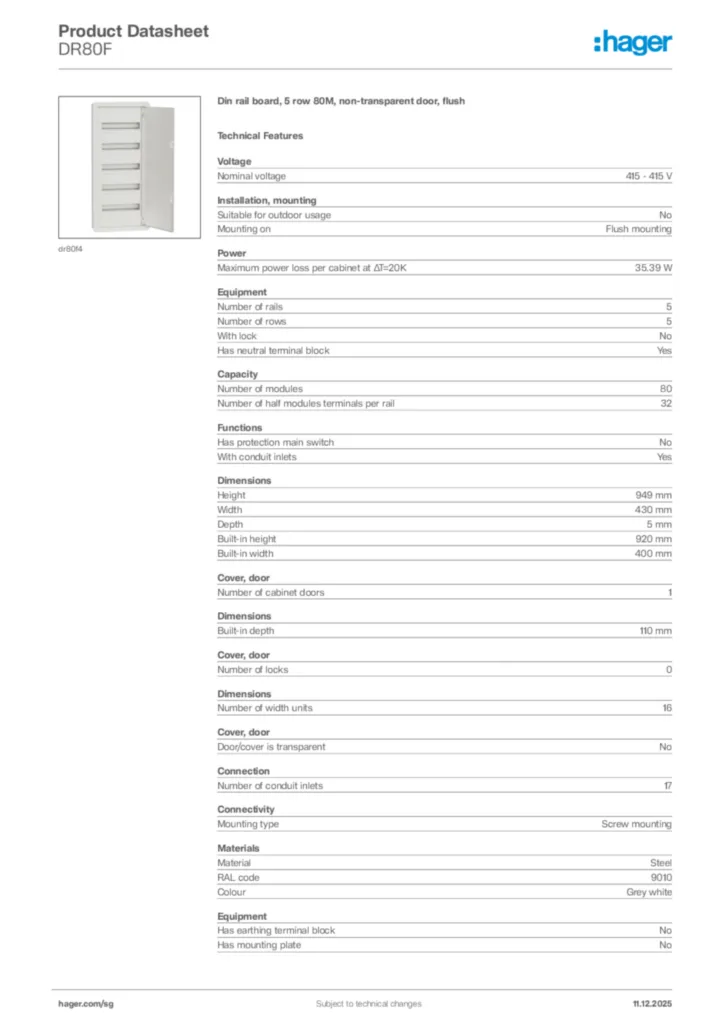

DR board, 16M*5Row, Flush • DR80F | Hager
Location Singapore

  • Better buildings. Better tomorrows.

    • Menu
    Account
    EAN-Nr.
    3250611090403
    Packaging
    1 piece

    Din rail board, 5 row 80M, non-transparent door, flush DR80F

    No longer available

    Complete your system

    Optional accessories

    • Lock system 1 products available

    Technical characteristics

    Connec­tion
    • Number of conduit inlets
      17
    Voltage
    • Nominal voltage
      415 - 415 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Power
    • Maximum power loss per cabinet at ΔT=20K
      35,39 W
    Equip­ment
    • Number of rails
      5
    • Number of rows
      5
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      No
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      80
    • Number of half modules terminals per rail
      32
    Func­tions
    • Has protec­tion main switch
      No
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      949 mm
    • Width
      430 mm
    • Depth
      5 mm
    • Built-in height
      920 mm
    • Built-in width
      400 mm
    • Built-in depth
      110 mm
    • Number of width units
      16
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Single door
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Grey white
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Without lock
    • Glow wire test
      960 °C
    • Protec­tion class with door
      IP40

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
