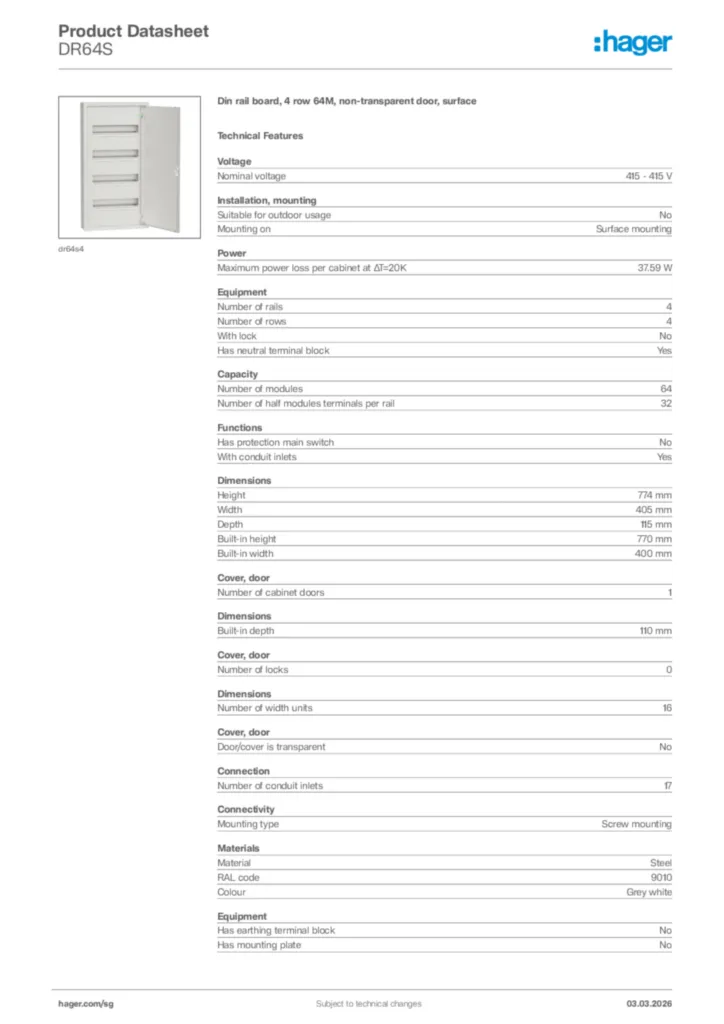

Din rail board, 4 row 64M, non-transparent door, surface DR64S
EAN-Nr.
3250611090366
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 1 products available
Technical characteristics
Connection
-
Number of conduit inlets17
Voltage
-
Nominal voltage415 - 415 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Power
-
Maximum power loss per cabinet at ΔT=20K37,59 W
Equipment
-
Number of rails4
-
Number of rows4
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockNo
-
Has mounting plateNo
Capacity
-
Number of modules64
-
Number of half modules terminals per rail32
Functions
-
Has protection main switchNo
-
With conduit inletsYes
Dimensions
-
Height774 mm
-
Width405 mm
-
Depth115 mm
-
Built-in height770 mm
-
Built-in width400 mm
-
Built-in depth110 mm
-
Number of width units16
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentNo
Connectivity
-
Mounting typeScrew mounting
Materials
-
MaterialSteel
-
RAL code9010
-
ColourGrey white
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP40
-
Locking typeWithout lock
-
Glow wire test960 °C
