Earth leakage add-on block 4P 63A 500mA AC S Class BR464N
EAN-Nr.
3250611484516
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn500 mA
-
Rated current63 A
Architecture
-
Number of poles4
-
Neutral positionRight
Capacity
-
Number of modules3
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height70 mm
-
Width35 mm
-
Depth92 mm
Downloads
-
Product datasheet

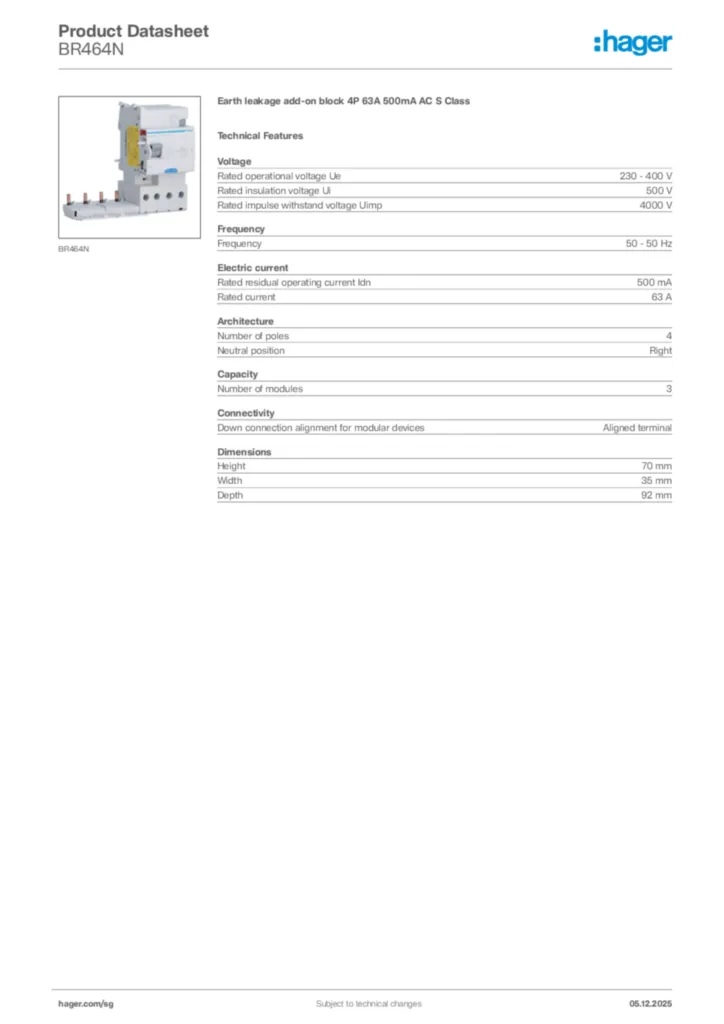

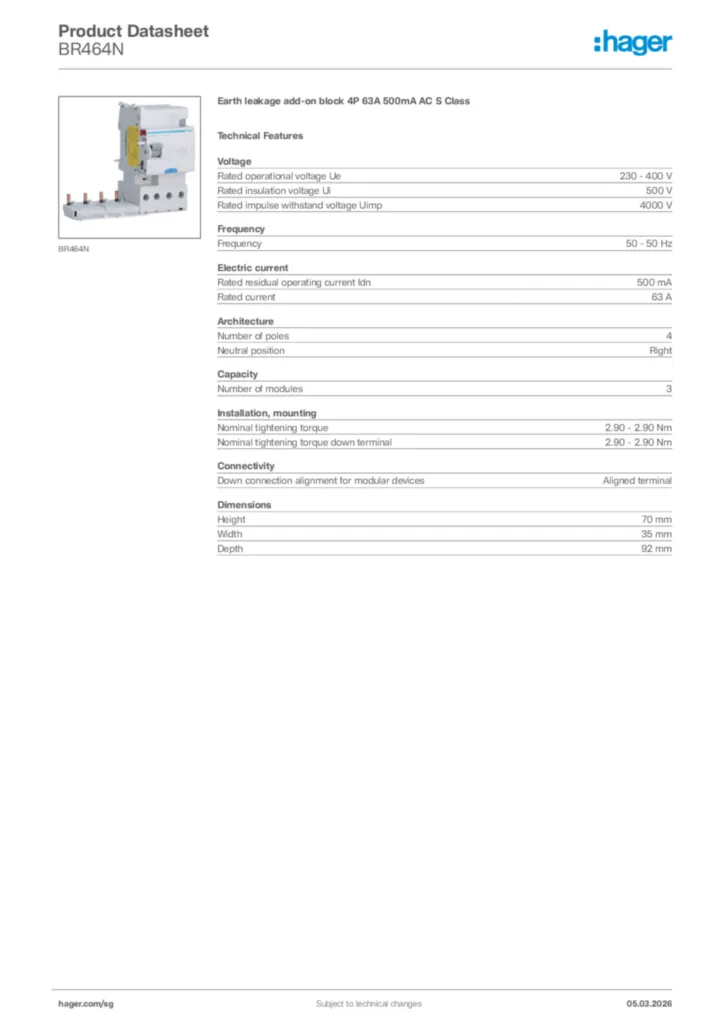

Hager Product data sheet BR464N
Earth leakage add-on block 4P 63A 500mA AC S Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
More documentation
