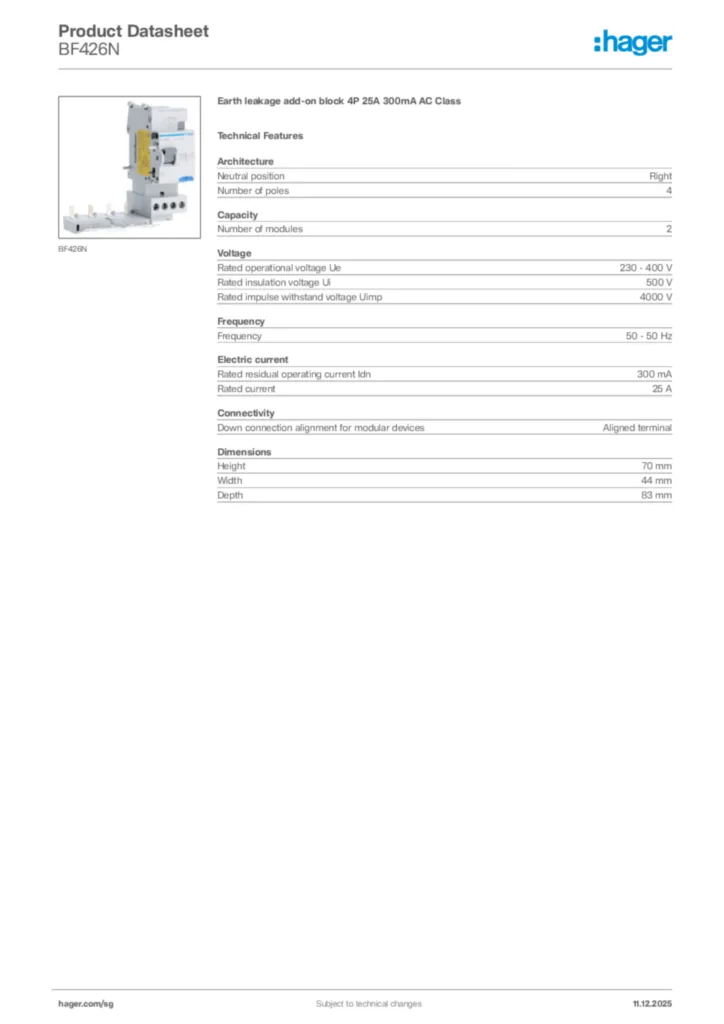

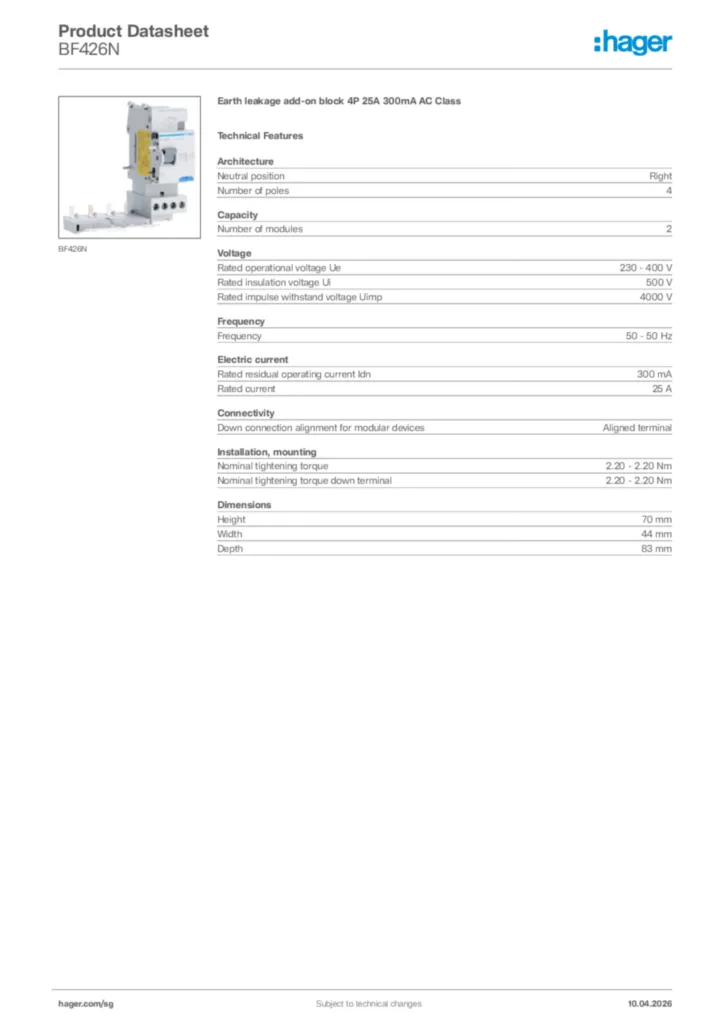

Earth leakage add-on block 4P 25A 300mA AC Class BF426N
EAN-Nr.
3250611364511
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Stop delivery w sub Example text: This product is now obsolete. However, you can view the following products as replacements or extensions. As the functions of the replacement product are not absolutely identical, please consult your nearest Hager partner if you have any questions.
Technical characteristics
Architecture
-
Neutral positionRight
-
Number of poles4
Capacity
-
Number of modules2
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current25 A
Frequency
-
Frequency50 - 50 Hz
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height70 mm
-
Width44 mm
-
Depth83 mm
