Earth leakage add-on block 4P 25A 30mA A Class BD425N
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Complete your system
Optional accessories
-
Modular phase busbar 2 products available
Technical characteristics
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn30 mA
-
Rated current25 A
Architecture
-
Number of poles4
-
Neutral positionRight
Installation, mounting
-
Nominal tightening torque down terminal2,20 - 2,20 Nm
Dimensions
-
Height70 mm
-
Width44 mm
-
Depth92 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

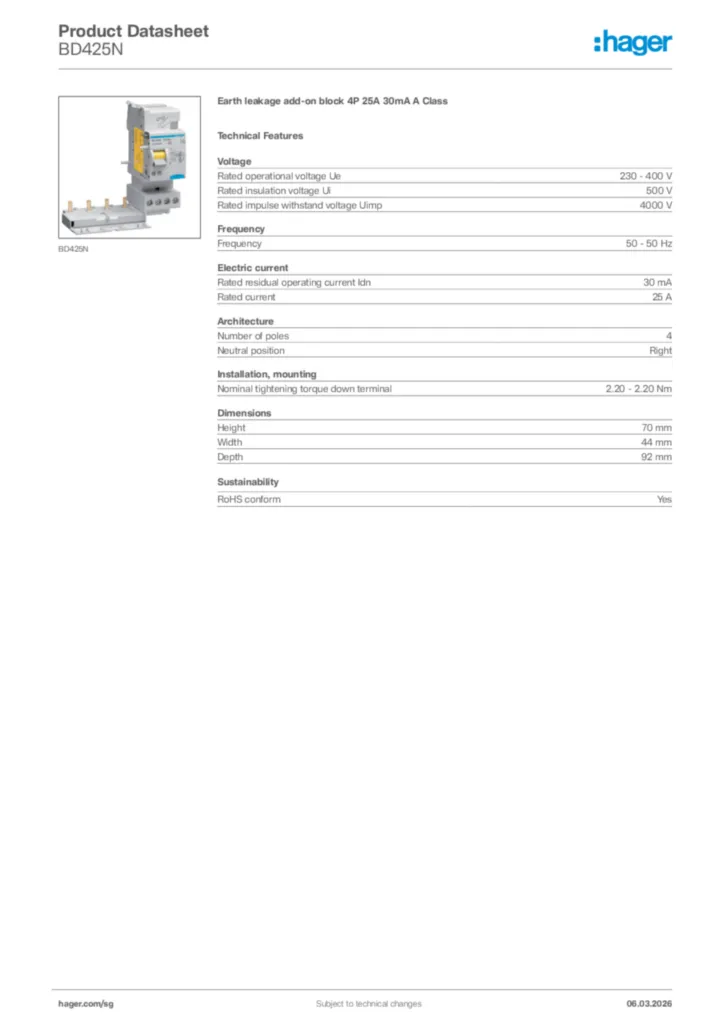

Hager Product data sheet BD425N
Earth leakage add-on block 4P 25A 30mA A Class
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
