EAN-Nr.

3250611343516

Packaging

1 piece

Earth leakage add-on block 3P 25A 30mA AC Class BD326N

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Documentations

Download the sheet

Technical characteristics

Neutral position

Right
Number of poles

3

Number of modules

2

Rated operational voltage Ue

400 - 400 V
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 50 Hz

Rated residual operating current Idn

30 mA
Rated current

25 A

Down connection alignment for modular devices

Aligned terminal

Nominal tightening torque

2,20 - 2,20 Nm
Nominal tightening torque down terminal

2,20 - 2,20 Nm

Height

70 mm
Width

44 mm
Depth

92 mm

Downloads

Product Image BD326N
Product datasheet

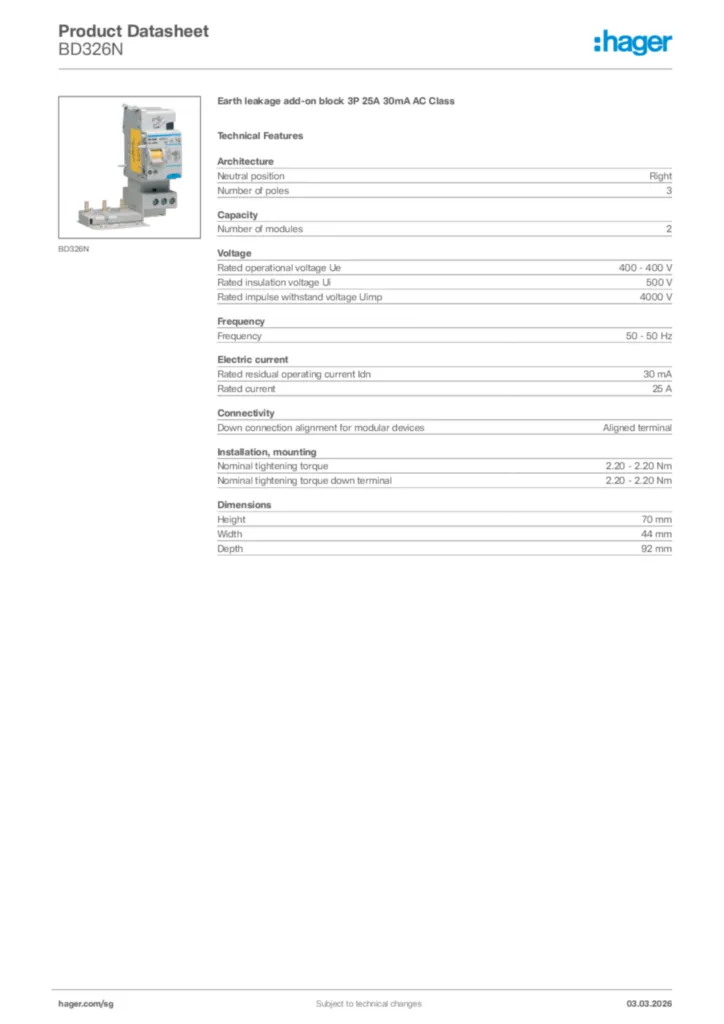

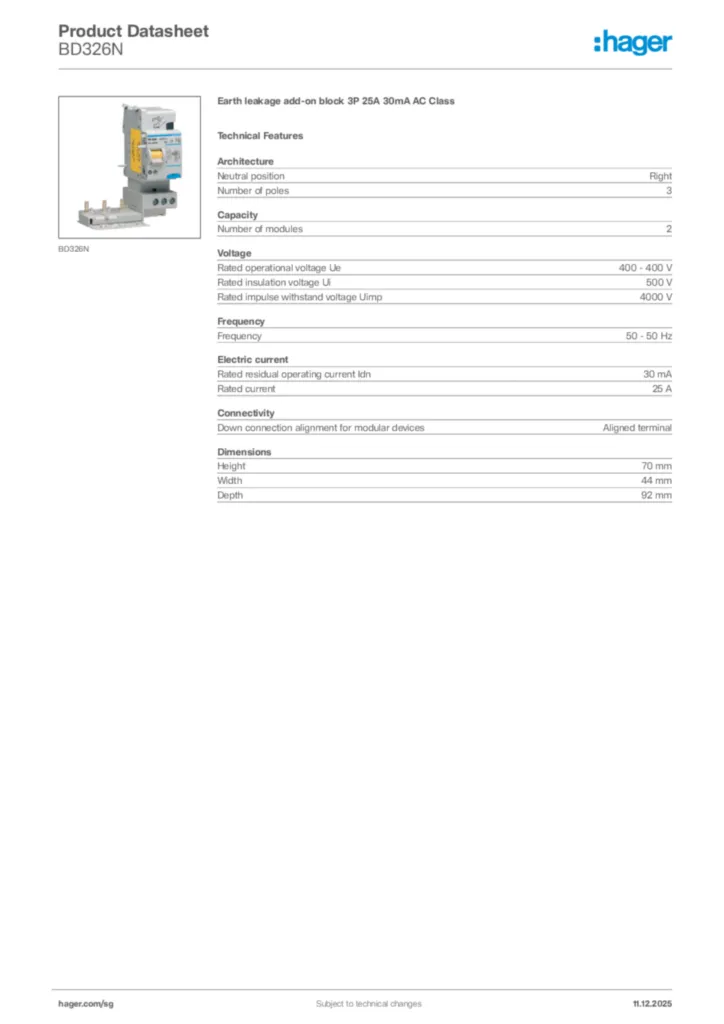

Hager Product data sheet BD326N
