Earth leakage add-on block 2P 25A 30mA A high immunity Class BD225
EAN-Nr.
3250611342250
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Technical characteristics
Electric current
-
Rated current25 A
-
Rated residual operating current Idn30 mA
Architecture
-
Number of poles2
Safety
-
Residual current typeA HI
Capacity
-
Number of modules2
Frequency
-
Frequency50 - 50 Hz
Installation, mounting
-
Nominal tightening torque1,70 - 1,70 Nm
Power
-
Total power loss under IN3,1 W
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations2000
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Dimensions
-
Height70 mm
-
Width35 mm
-
Depth92 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

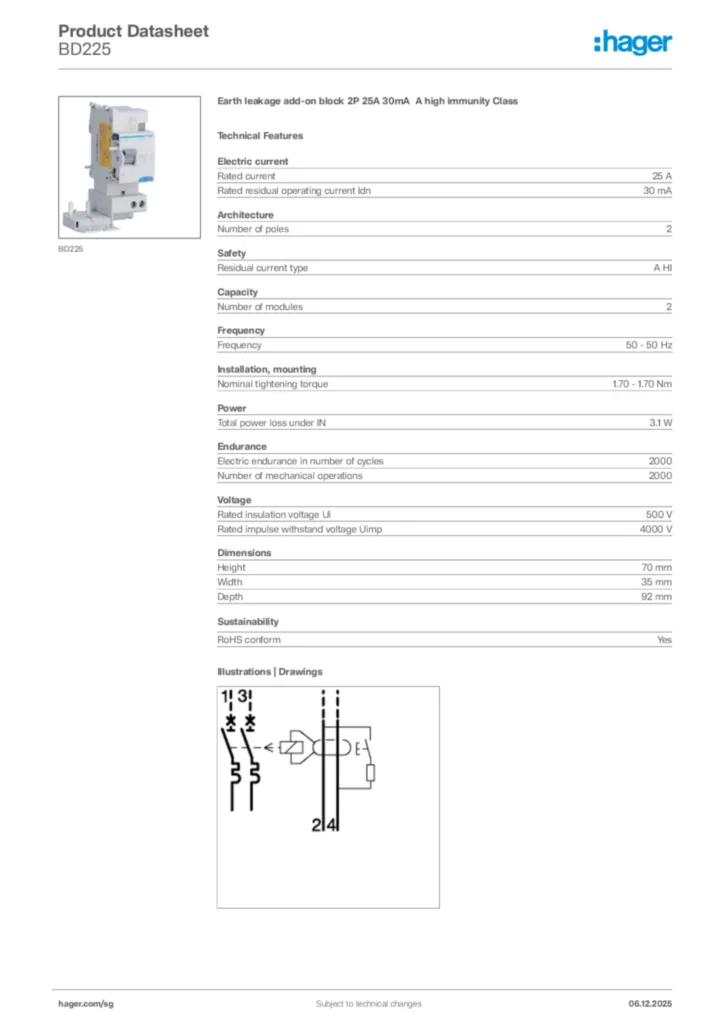

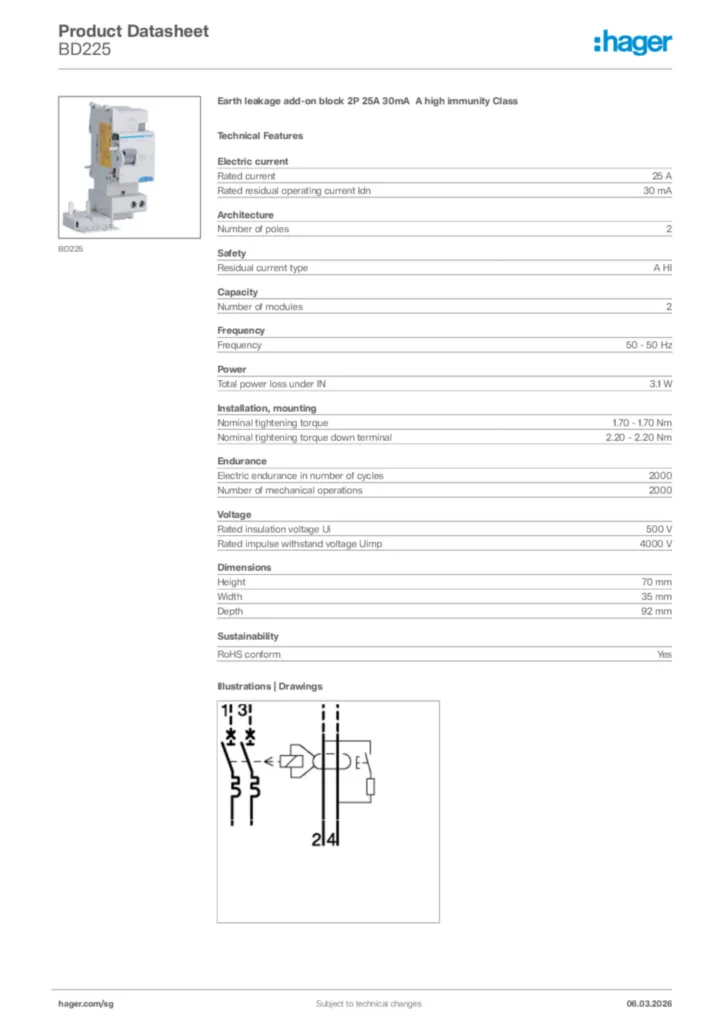

Product datasheet
Hager Product data sheet BD225
Earth leakage add-on block 2P 25A 30mA A high immunity Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
More documentation
