RCBO 1M 1P 6kA C-20A 100mA AC AEC220R

No longer available

Accessories
Technical characteristics
Environmental value
Documentations

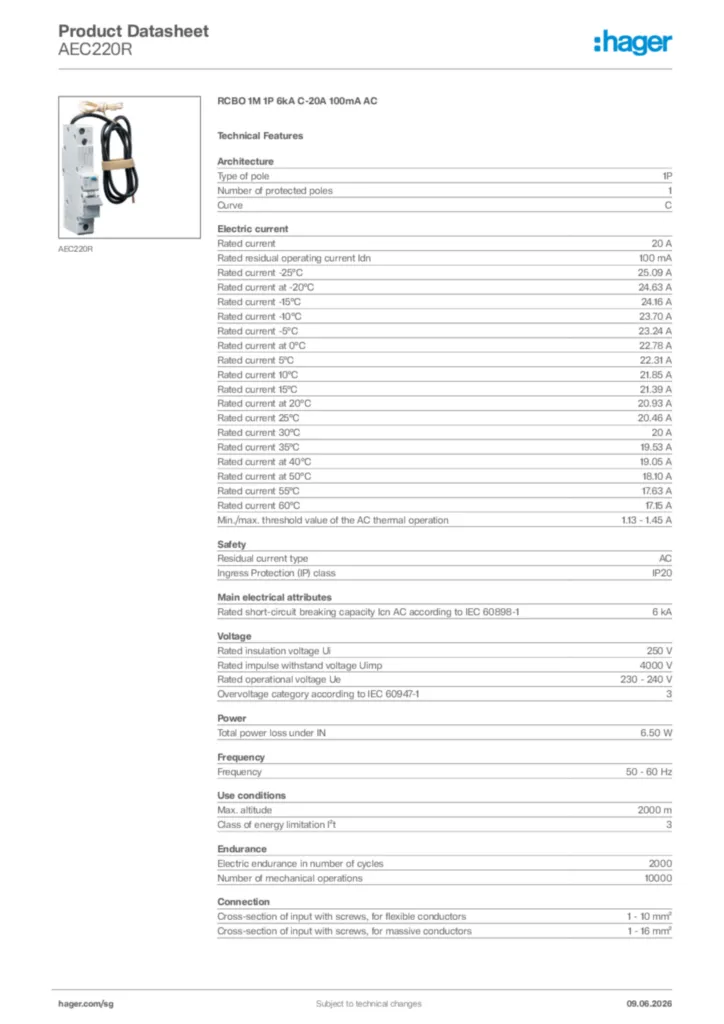

Download the sheet

Complete your system

Locking interlocking functions 1 products available

Technical characteristics

Type of pole

1P
Number of protected poles

1
Curve

C

Rated current IN

20 A
Rated residual operating current Idn

100 mA
Rated current at -25°C

25,09 A
Rated current at -20°C

24,63 A
Rated current at -15°C

24,16 A
Rated current at -10°C

23,7 A
Rated current at -5°C

23,24 A
Rated current at 0°C

22,78 A
Rated current at 5°C

22,31 A
Rated current at 10°C

21,85 A
Rated current at 15°C

21,39 A
Rated current at 20°C

20,93 A
Rated current at 25°C

20,46 A
Rated current at 30°C

20 A
Rated current at 35°C

19,53 A
Rated current at 40°C

19,05 A
Rated current at 50°C

18,1 A
Rated current at 55°C

17,63 A
Rated current at 60°C

17,15 A
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

AC
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4000 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Power dissipation at IN

6,50 W

Frequency

50 - 60 Hz

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-5 - 40 °C
Storage/transport temperature

-40 - 70 °C

Electric endurance in number of cycles

2000
Number of mechanical operations

10000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

1

Height

115 mm
Width

17,80 mm
Depth

70 mm

Suitable for DIN Rail

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
