RCBO Electronic 1P 6kA C-32A 30mA A Class 1M ADC332T

No longer available

Accessories
Technical characteristics
Environmental value
Documentations

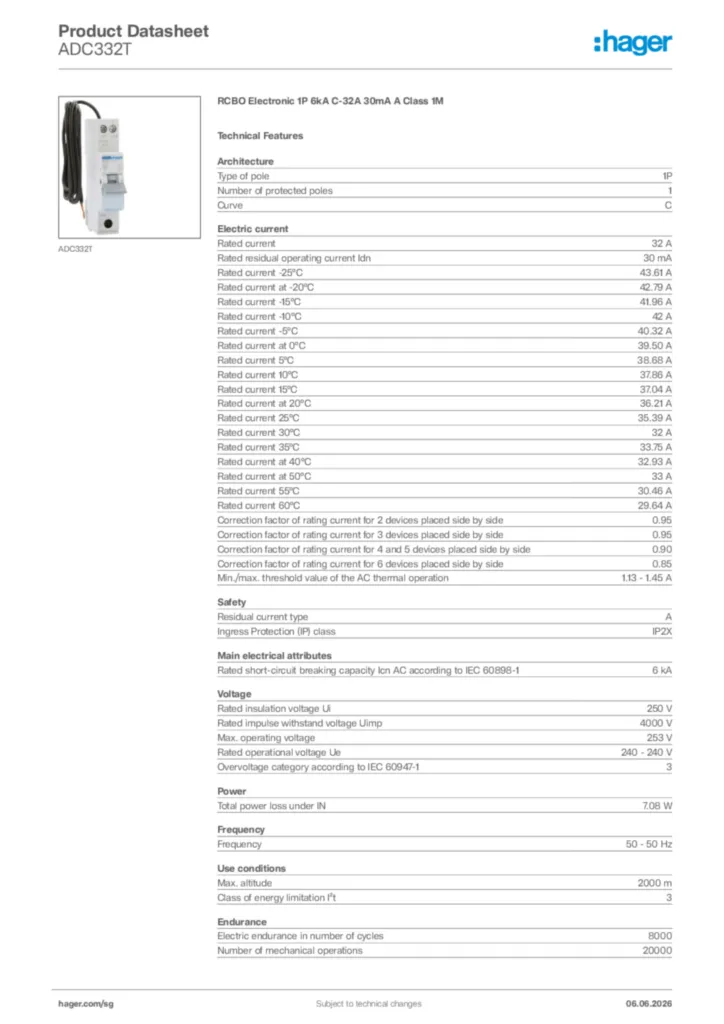

Download the sheet

Complete your system

Locking interlocking functions 1 products available

Technical characteristics

Type of pole

1P
Number of protected poles

1
Curve

C

Rated current

32 A
Rated residual operating current Idn

30 mA
Rated current -25°C

43,61 A
Rated current at -20°C

42,79 A
Rated current -15°C

41,96 A
Rated current -10°C

42 A
Rated current -5°C

40,32 A
Rated current at 0°C

39,50 A
Rated current 5°C

38,68 A
Rated current 10°C

37,86 A
Rated current 15°C

37,04 A
Rated current at 20°C

36,21 A
Rated current 25°C

35,39 A
Rated current 30°C

32 A
Rated current 35°C

33,75 A
Rated current at 40°C

32,93 A
Rated current at 50°C

33 A
Rated current 55°C

30,46 A
Rated current 60°C

29,64 A
Correction factor of rating current for 2 devices placed side by side

0,95
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

A
Ingress Protection (IP) class

IP2X

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

253 V
Rated operational voltage Ue

240 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

7,08 W

Frequency

50 - 50 Hz

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-20 - 70 °C
Storage/transport temperature

-25 - 80 °C

Electric endurance in number of cycles

8000
Number of mechanical operations

20000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 16 mm²

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal

Number of modules

1

Height

92 mm
Width

17,70 mm
Depth

70 mm

Suitable for DIN Rail

Yes
