RCBO 1P 10kA C-16A 10mA AC ACC216P

No longer available

Accessories
Technical characteristics
Environmental value
Documentations

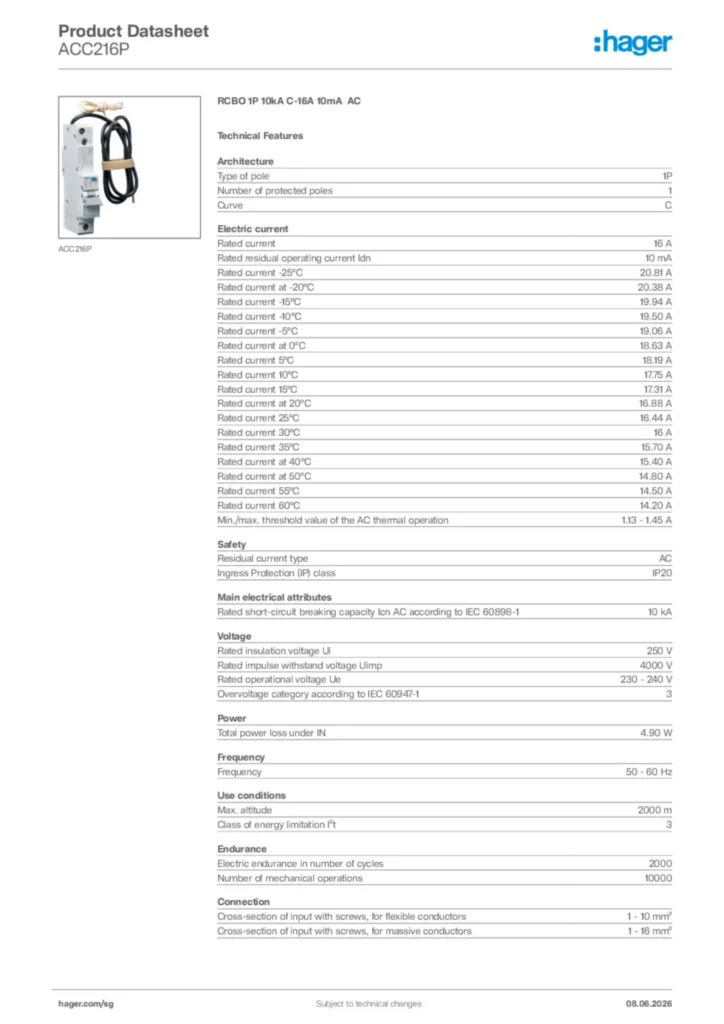

Download the sheet

Complete your system

Locking interlocking functions 1 products available

Technical characteristics

Type of pole

1P
Number of protected poles

1
Curve

C

Rated current IN

16 A
Rated residual operating current Idn

10 mA
Rated current at -25°C

20,81 A
Rated current at -20°C

20,38 A
Rated current at -15°C

19,94 A
Rated current at -10°C

19,5 A
Rated current at -5°C

19,06 A
Rated current at 0°C

18,63 A
Rated current at 5°C

18,19 A
Rated current at 10°C

17,75 A
Rated current at 15°C

17,31 A
Rated current at 20°C

16,88 A
Rated current at 25°C

16,44 A
Rated current at 30°C

16 A
Rated current at 35°C

15,7 A
Rated current at 40°C

15,4 A
Rated current at 50°C

14,8 A
Rated current at 55°C

14,5 A
Rated current at 60°C

14,2 A
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

AC
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4000 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Power dissipation at IN

4,90 W

Frequency

50 - 60 Hz

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-5 - 40 °C
Storage/transport temperature

-40 - 70 °C

Electric endurance in number of cycles

2000
Number of mechanical operations

10000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

1

Height

115 mm
Width

17,80 mm
Depth

70 mm

Suitable for DIN Rail

Yes
