EAN

3250617580533

Packaging

5

Silhouette 15A socket Horz + shutter WBSP115S

Also available in

Product colour - White

Light grey

White

Surface finish

Glossy Matt

Accessories
Technical properties
Environmental value
Documentations

Download the data sheet

Complete your system

Surface-mounted housing for flush-mounted switching device 1 products available

Technical properties

Rated current

15 A

Frequency

50 - 50 Hz

Colour

White
Surface finish

Glossy
Material

Polycarbonate (PC)

Height

77 mm
Width

117 mm
Depth

28 mm
Built-in depth

23 mm

Mounting on

Flush mounting

Type of connection

Screw terminal
Mounting type

Screw mounting

Connector/plug type socket outlet

Australian standard AS/NZS 3112
Rotated central insert

No
With hinged lid

No

Has labelling field

No

Number of modules

1

Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Halogen free Yes

Certifications and documents

Hager RoHS report WBSP115S

PDF

Downloads

Product image

Product Image WBSP115S
Product datasheet

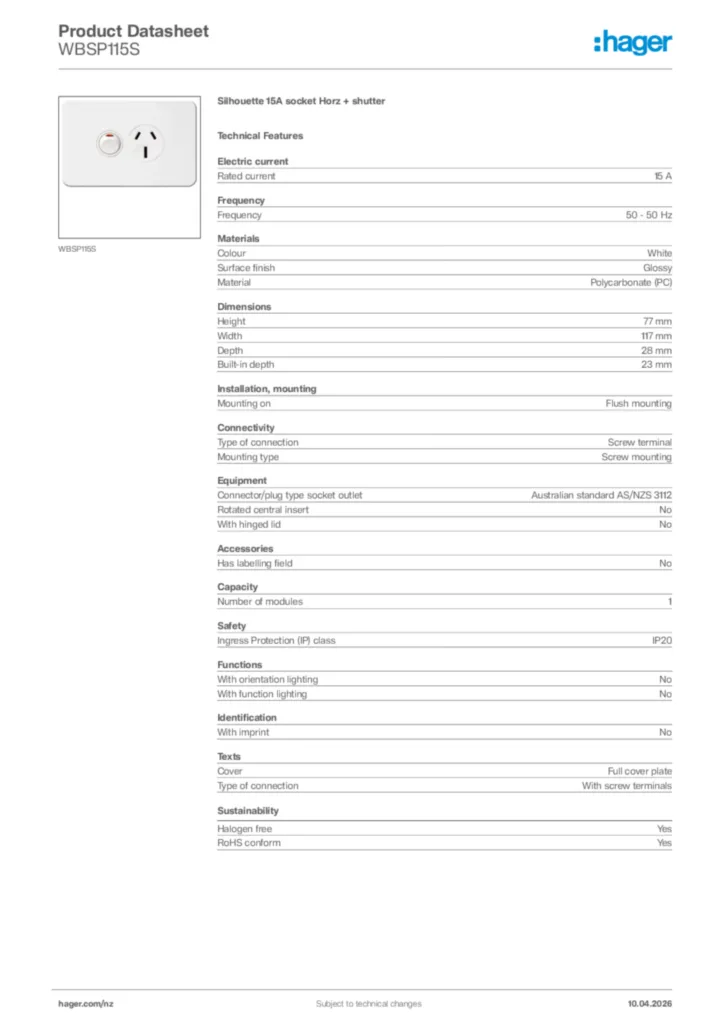

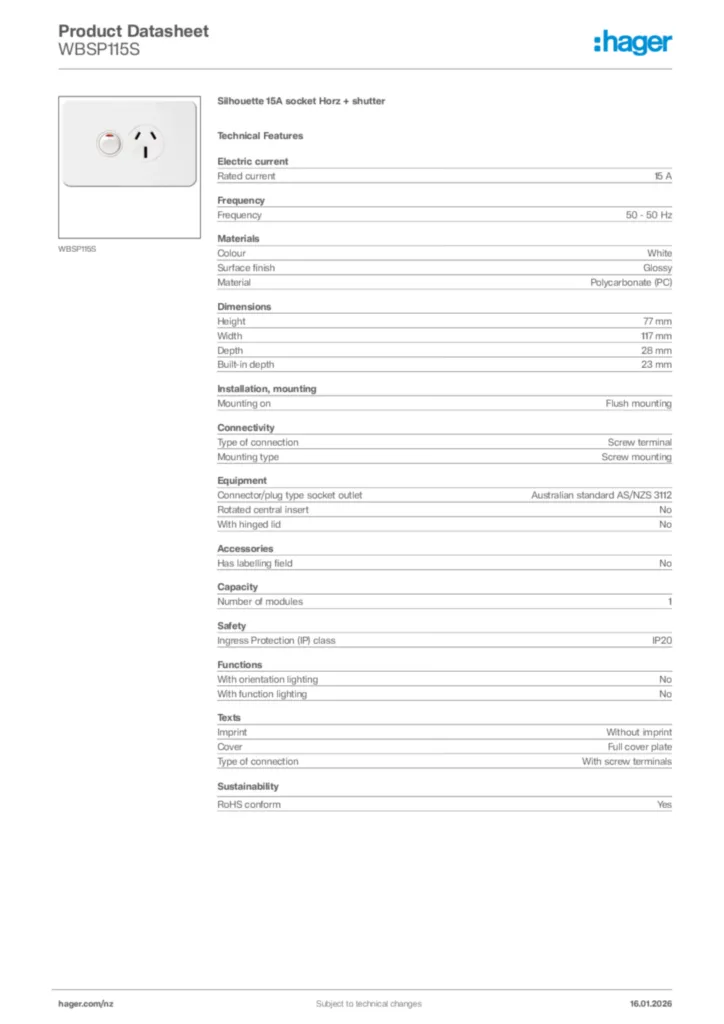

Hager Product data sheet WBSP115S

Silhouette 15A socket Horz + shutter

PDF

More documentation
