EAN

3250617005500

Packaging

10

Switches and Plates

FIN 1 Gang Switch Plate cw mechs MW WBQSV1-MW

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Control element/cover plate for domestic switching devices 1 products available

Technical properties

Rated current

16 A

Mounting on

Flush mounting

Frequency

50 - 50 Hz

Colour

White
Surface finish

Matt
Material

Polycarbonate (PC)
Treatment

Varnished

Assembly arrangement

Basic element with full cover plate

Mounting type

Screw mounting

Number of buttons

1

Built-in depth

23 mm
Built-in depth flush-mounted boxes

23 mm

Ingress Protection (IP) class

IP2X
Impact resistance IK

IK08

Installation mode

For screw fastening
Type of connection

With screw terminals
Lighting

Without lighting (cannot be illuminated)
Switch mode

2-way, with loop terminal

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes

Certifications and documents

2 way switch gallery InterBP with neutral 2 modules

PDF

28,95 MB

Hager REACH declaration WBQSV1-MW

PDF

Hager RoHS report WBQSV1-MW

PDF

Downloads

Product image

Product Image WBQSV1-MW

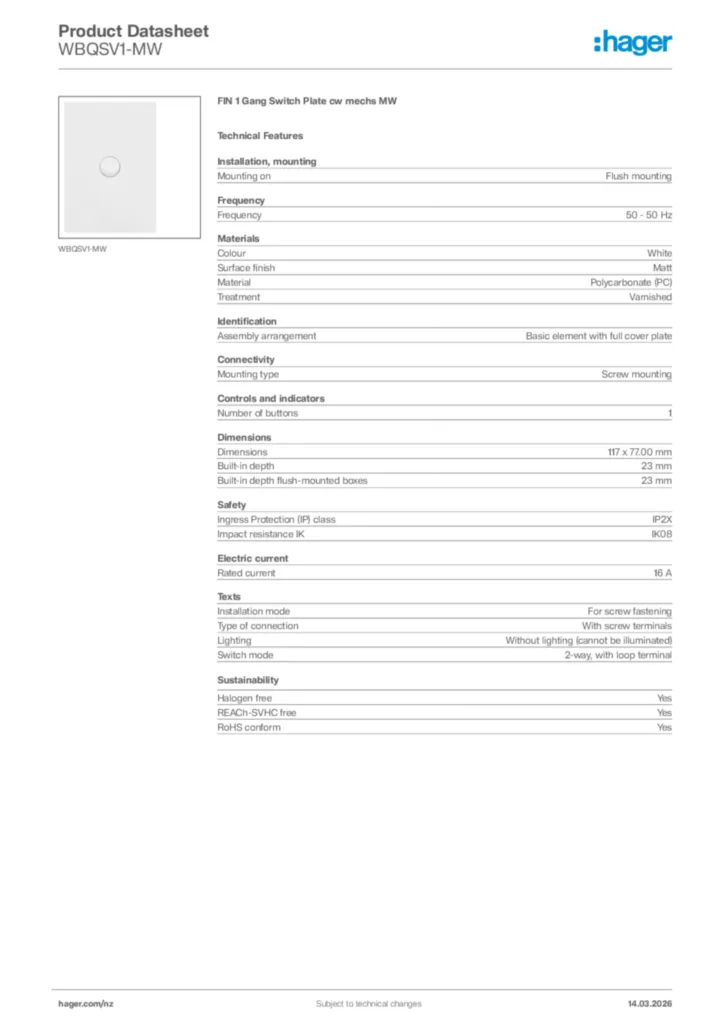

Product datasheet

Hager Product data sheet WBQSV1-MW

FIN 1 Gang Switch Plate cw mechs MW

PDF

More documentation
