Mechanism TV PAL to F MW WBMTV75PF-MW

EAN
3250617008785
Packaging
10

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Mechanism TV PAL to F MW

WBMTV75PF-MW

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Compatible products

  • Suitable with 6 products available

Suitable with

  • WBSSP1-MW

    Silhouette 1G switch plate, no mech MW
    0.00 €  / *
  • WBSSP2-MW

    Silhouette 2G switch plate, no mech MW
    0.00 €  / *
  • WBSSP3-MW

    Silhouette 3G switch plate, no mech MW
    0.00 €  / *
  • WBQSP1-MW

    FIN 1 Gang Switch Plate MW
    0.00 €  / *
  • WBQSP2-MW

    FIN 2 Gang Switch Plate MW
    0.00 €  / *
  • WBSSP4-MW

    Silhouette 4G switch plate, no mech MW
    0.00 €  / *

Technical properties

Connec­tion
  • Connect­or/plug type
    Coax, Roto­Loc®
  • Number of connec­tions
    1
Mater­ials
  • Colour
    White
  • Surface finish
    Matt
  • Treat­ment
    Varnished
Dimen­sions
  • Height
    26,50 mm
  • Width
    26,50 mm
  • Depth
    46 mm
  • Built-in depth flush-­mounted boxes
    25 mm
Equip­ment
  • Shielded
    No
  • With dust cover
    No
Safety
  • Ingress Protec­tion (IP) class
    IP20
  • Related Systems
    allure, finesse, silhou­ette

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes
Halogen free Yes

Certifications and documents

TV socket gallery direct 2 modules
PDF
26,44 MB
Hager RoHS report WBMTV75PF-MW
PDF

Downloads

  • Product image

    Image WBMTV75PF-MW | Hager New Zealand

    Product Image WBMTV75PF-MW

  • Product datasheet

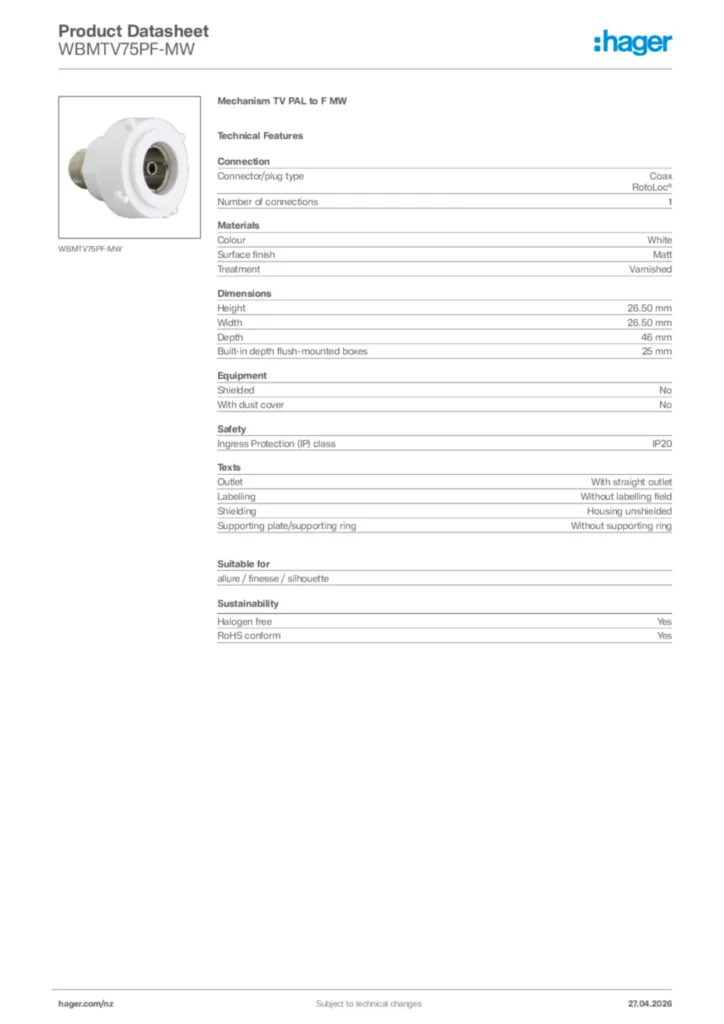

    Image Hager Product data sheet WBMTV75PF-MW | Hager New Zealand

    Hager Product data sheet WBMTV75PF-MW

    Mechanism TV PAL to F MW
