Mechanism, 5A electronic push button WBME5A
EAN
3250617000727
Packaging
5
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 9 products available
Suitable with
-
WBSSP1-MWSilhouette 1G switch plate, no mech MW
-
WBSSP2-MWSilhouette 2G switch plate, no mech MW
-
WBSSP3-MWSilhouette 3G switch plate, no mech MW
-
WBQSP1-MWFIN 1 Gang Switch Plate MW
-
WBQSP2-MWFIN 2 Gang Switch Plate MW
-
WBSSP1Silhouette 1G switch plate, no mech
-
WBSSP2Silhouette 2G switch plate, no mech
-
WBSSP3Silhouette 3G switch plate, no mech
-
WBSSP4-MWSilhouette 4G switch plate, no mech MW
Technical properties
Connectivity
-
With bus system KNX radioNo
Frequency
-
Frequency50 - 50 Hz
Materials
-
ColourWhite
-
MaterialPolycarbonate (PC)
Dimensions
-
Built-in depth45 mm
-
Depth45 mm
Architecture
-
Control/operation elementPush button
Power
-
Power consumption standby0,35 W
-
230 V incandescent and halogen lamp1200 W
Lighting
-
LED lamp power500 W
Use conditions
-
Operating temperature5 - 40 °C
Connection
-
Cross-section rigid conductor1 - 2.5 mm²
Capacity
-
Number of modules1
Texts
-
Installation modeRotoLoc®
-
Type of connectionWith screw terminals
-
Extension unit inputWith extension unit input for slave push-button WBMESL
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

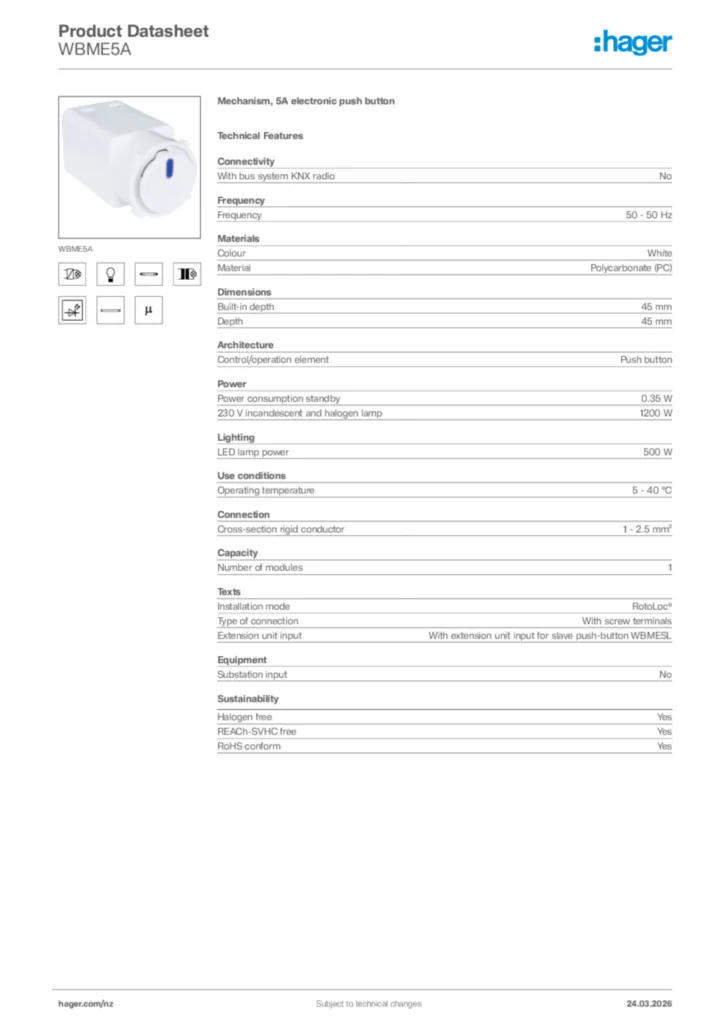

Hager Product data sheet WBME5A
Mechanism, 5A electronic push button
PDF -
Installation manual
Installation manual en-GB 2022-05-05
PDF242,03 kB
More documentation
