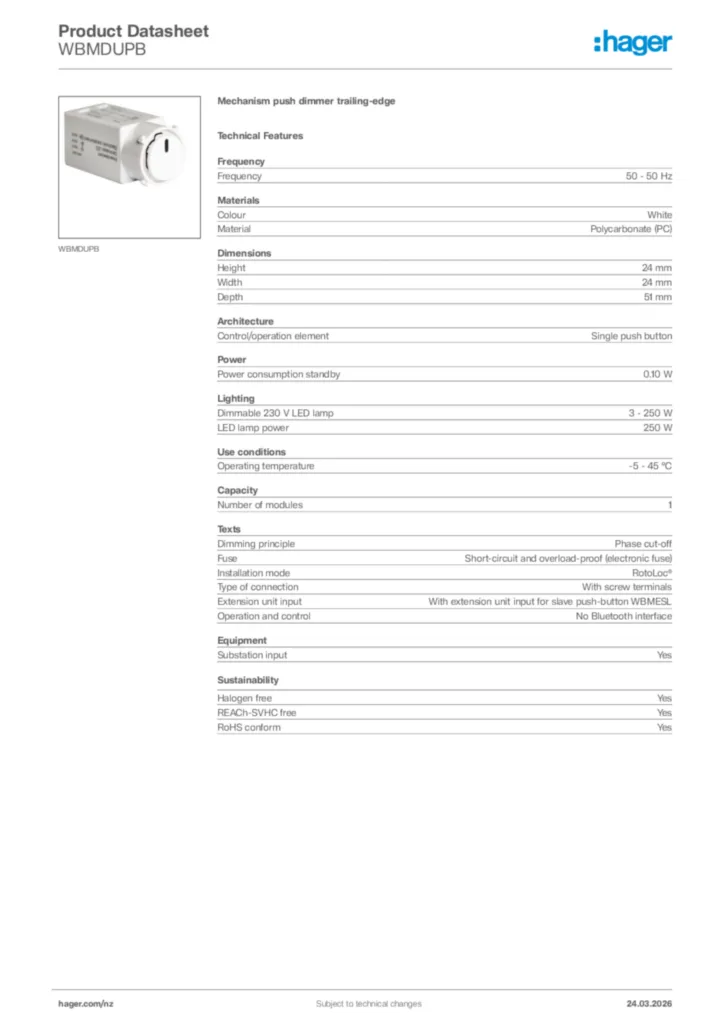

Mechanism push dimmer trailing-edge WBMDUPB
EAN
3250617009140
Packaging
5 PCEs
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of control unitPush button
Main electrical features
-
Nominal voltage230 V
-
Frequency50 Hz
Voltage
-
Operating voltage230 V~ +10%/-15%
Fuse
-
Fuseshort-circuit and overload proof (electronic fuse)
Dimensions
-
Depth51 mm
-
Height24 mm
-
Width24 mm
Power
-
Power consumption (standby)max. 0.1 W
-
Electronic transformers20…350 W
Measurement
-
Extension unit inputwith extension unit input for slave push-button WBMSLL
Materials
-
Colourwhite
-
MaterialPolycarbonate (PC)
LED control
-
Dimmable 230 V LED lamps2.5…250 W
-
LEDwith blue status LED
Incandescent bulbs control
-
230 V incandescent lamps and halogen lamps7…300 W
Installation, mounting
-
Installation modeRotoLoc ®
Connection
-
Conductor cross-section1.5 mm²
Cable
-
Cable length, extensionsmax. 20 m
Equipment
-
On/Off switchYes
-
Dimming principlephase cut-off
-
Brightnesswith brightness memory
Safety
-
Halogen freeYes
Use conditions
-
Operating temperature-5…50 °C
-
Storage/transport temperature-20…70 °C
-
Temperaturewith overheating protection
Identification
-
Main design lineMechanisms
