  • VD110PT

Sm.distr.,VD/IC²,surface,1row,10M,IP40,MS-terminals,N+PE,AUS,white door

VD110PT

  • VD Surface Mounted Enclosures with Opaque or Transparent Door

Sm.distr.,VD/IC²,surface,1row,10M,IP40,MS-terminals,N+PE,AUS,white door VD110PT

EAN
3250616467415
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Documentations
  • More products

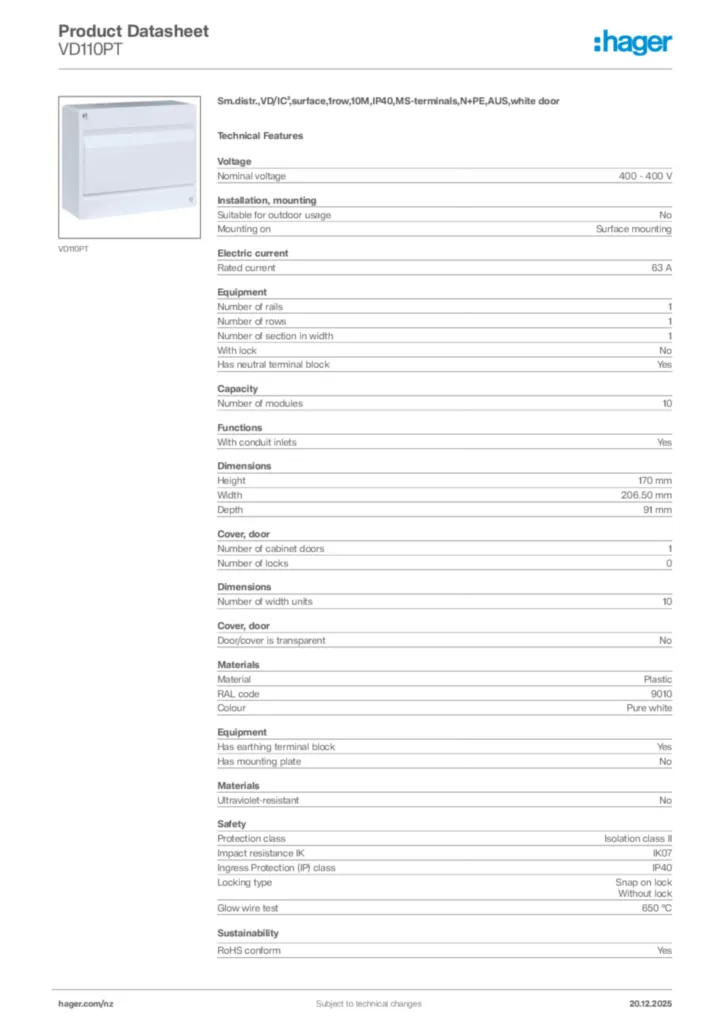

Download the data sheet

Technical properties

Functions
  • With a pipe-in lead
    Yes
Configuration
  • Number of modules
    10
Main electrical features
  • Nominal voltage
    400 V
Electric current
  • Rated current
    63 A
Dimensions
  • Depth of installed product
    91 mm
  • Internal depth
    72 mm
  • Height of installed product
    170 mm
  • Width of installed product
    206.5 mm
  • Width in division units
    10
Cover, door
  • Identification od protection index
    40
  • Interlockable
    No
  • Number of keylock of the door
    0
  • Cover type
    Closed (plain)
  • Door locking
    without
  • Door leave
    single
  • Cover type
    Door
  • Transparent cover or door
    No
Materials
  • Colour
    white
  • RAL colour
    RAL 9010 - Pure white
  • Material
    plastic
  • Type of surface treatment
    untreated
Installation, mounting
  • Suitable for outdoor use
    No
Settings
  • Enclosure type
    Distributor empty cabinet
Equipment
  • Number of rows
    1
  • Quantity of section in width
    1
  • Quantity of rails
    1
  • Can be accessorized
    Yes
  • Number of openings for flange plates
    0
  • Extension possible
    No
  • Earthing terminal block
    Yes
  • Neutral terminal block
    Yes
  • Signal passing door
    Yes
Standards
  • GWT Glow wire test
    650 °C
Safety
  • IK protection code against mecanical impacts
    IK07
  • Protection class
    isol.class II
  • REACH conform
    No
  • RoHS conform
    Yes
  • Halogen free
    No
Use conditions
  • Operating temperature
    -25…40 °C

Downloads

  • Product image

    Image VD110PT | Hager New Zealand

    Product Image VD110PT

  • ProductNotice

    Image Instruction manuals for VD110PT | Hager New Zealand

    Instruction manuals for VD110PT

    PDF
    440 KB

  • ProductECDeclaration

    Image Declaration | Hager New Zealand

    Declaration

    PDF
    201 KB
    Image EU Declaration of conformity for VD110PT | Hager New Zealand

    EU Declaration of conformity for VD110PT

    PDF
    205 KB

  • ProductROHS

    Image REACH-declaration 2023-10-20 (english) | Hager New Zealand

    REACH-declaration 2023-10-20 (english)

    PDF
    33 KB
    Image RoHS-declaration 2023-10-20 (english) | Hager New Zealand

    RoHS-declaration 2023-10-20 (english)

    PDF
    33 KB
