Sm.distr.,VD/IC²,surface,1row,3M,IP30,no terminals,AUS,without door VD103NT
EAN
3250616467316
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Functions
-
With a pipe-in leadYes
Configuration
-
Number of modules3
Main electrical features
-
Nominal voltage400 V
Electric current
-
Rated current63 A
Dimensions
-
Depth of installed product71 mm
-
Internal depth72 mm
-
Height of installed product163.5 mm
-
Width of installed product63.5 mm
-
Width in division units3
Cover, door
-
Type of door closingnon keylock
-
InterlockableNo
-
Number of keylock of the door0
-
Cover typeClosed (plain)
-
Transparent cover or doorNo
Materials
-
Colourwhite
-
RAL colourRAL 9010 - Pure white
-
Materialplastic
-
Type of surface treatmentuntreated
Installation, mounting
-
Suitable for outdoor useNo
Settings
-
Enclosure typeDistributor empty cabinet
Equipment
-
Number of rows1
-
Quantity of section in width1
-
Quantity of rails1
-
Can be accessorizedYes
-
Number of openings for flange plates0
-
Extension possibleNo
-
Earthing terminal blockNo
-
Neutral terminal blockNo
-
Signal passing doorYes
Standards
-
European directive WEEEnot concerned
Safety
-
IK protection code against mecanical impactsIK07
-
Protection classisol.class II
-
REACH conformNo
-
RoHS conformYes
-
Halogen freeYes
Use conditions
-
Operating temperature-25…40 °C
Downloads
-

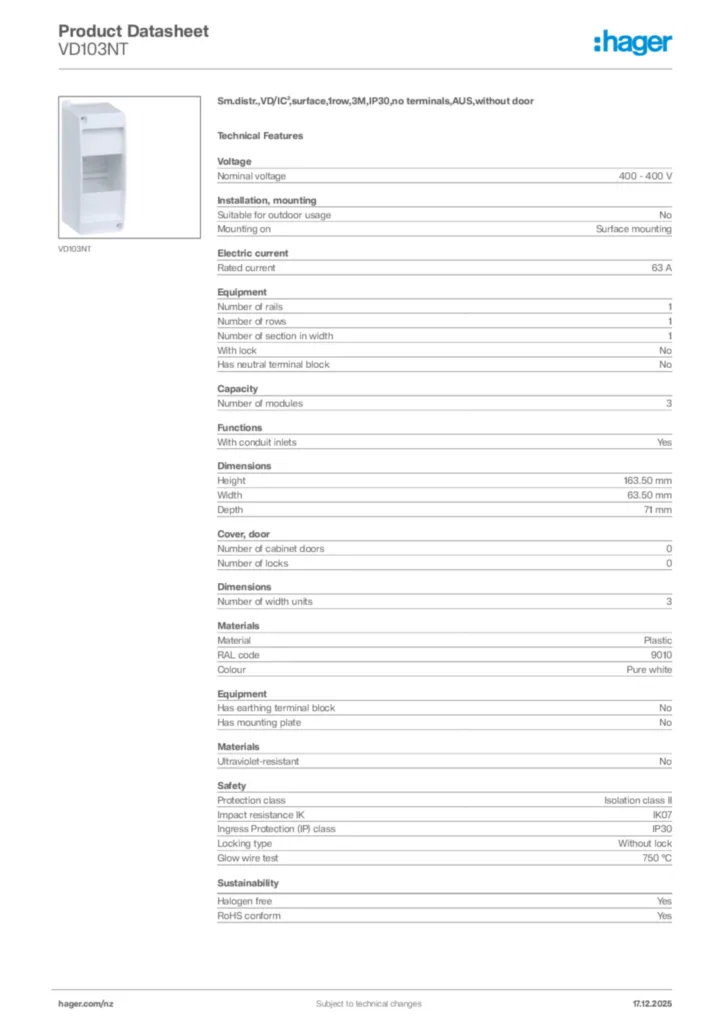

Product image
-
