    • Home
    • Catalog
    • TYBS702A
    EAN
    3250610050521
    Packaging
    1 Piece
    Data Act Notice

    Binary input 2 fold, flush mounted, KNX TYBS702A

    Available soon

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Binary input 2 fold, flush mounted, KNX

    TYBS702A

    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Technical properties

    Archi­tec­ture
    • Bus system
      KNX
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    Elec­tric current
    • Number of entry circuits
      2
    Connectivity
    • With bus system KNX radio
      No
    Equip­ment
    • External signal voltage neces­sary
      No
    • Radio frequency bidirec­tional
      No
    • With battery
      No
    • With HVAC control
      No
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Lighting
    • LED controlling
      No
    Mater­ials
    • Material
      Plastic
    • Colour
      Light grey
    • RAL code
      7035
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -5 - +45 °C
    Cable
    • Cable length
      0.25 m
    Voltage
    • Input voltage
      3,3-3,3 V
    • Oper­ating voltage over bus
      21-32 V
    • Type voltage supply
      DC
    • System supply voltage
      30 V DC Via bus
    Dimen­sions
    • Length
      43 mm
    • Height
      28,5 mm
    • Depth
      15,4 mm
    Texts
    • Install­a­tion mode
      For flush-­mounted and hollow wall mounting
    • Type of connec­tion
      With pre-assembled cable
    Data act compli­ance
    • Is gener­ating data
      Yes
    • Data types
      Basic inform­a­tion, Binary input, On/Off status
    • Data formats
      KNX (TP)
    • Estim­ated daily data volume
      10 KB - 100 KB
    • Real time data gener­a­tion
      Yes
    • Data stored on device
      No

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP document en-GB 2024-04-12
    PDF
    412,93 kB
    REACH declaration TYBS702A
    PDF
    RoHS report TYBS702A
    PDF

    Downloads

    • Product image

      Image TYBS702A | Hager New Zealand

      Product Image TYBS702A

    • Product datasheet

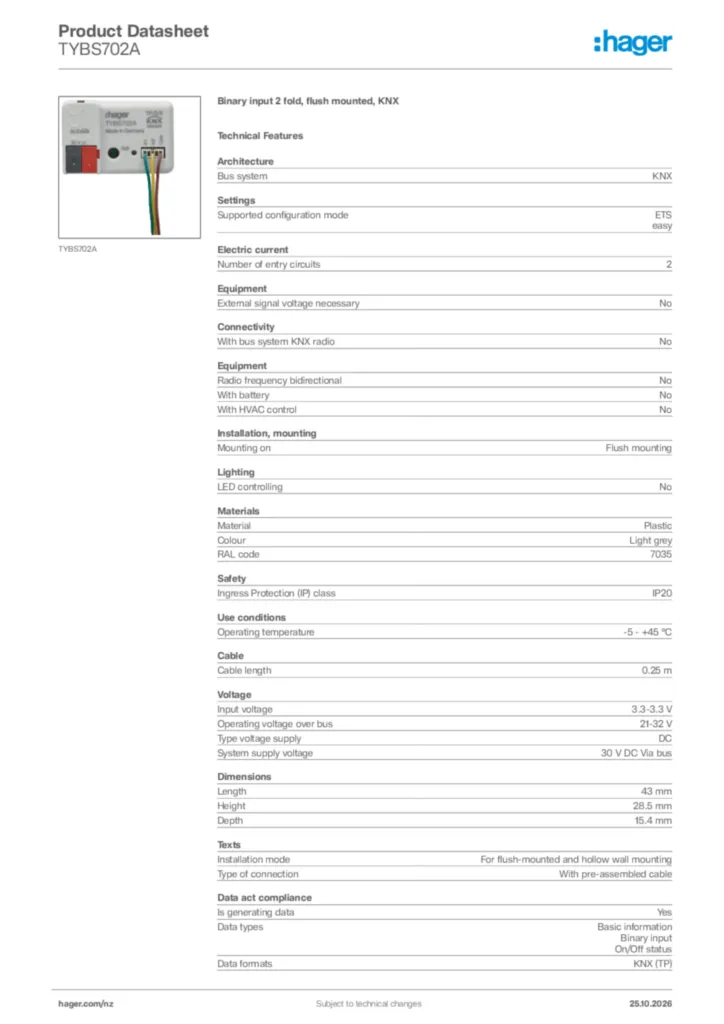

      Image Hager Product data sheet TYBS702A | Hager New Zealand

      Hager Product data sheet TYBS702A

      Binary input 2 fold, flush mounted, KNX

      PDF

    • Instruction manual

      Image Instruction manual en-GB 2025-04-01 | Hager New Zealand

      Instruction manual en-GB 2025-04-01

      PDF
      884,17 kB

    • Installation manual

      Image Installation manual International 2026-09-21 | Hager New Zealand

      Installation manual International 2026-09-21

      PDF
      3,04 MB
      Image Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, pt-PT, zh-CN 2023-12-15 | Hager New Zealand

      Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, pt-PT, zh-CN 2023-12-15

      PDF
      3,05 MB

    • Manual

      Image Manual en-GB 2021-11-10 | Hager New Zealand

      Manual en-GB 2021-11-10

      PDF
      2,67 MB

    • ProductETSBase

      Image KNX product database International 2024-05-06 | Hager New Zealand

      KNX product database International 2024-05-06

      KNXPROD
      1,16 MB

    • ProductApplicationDescription

      Image Application Guide en-GB 2024-06-27 | Hager New Zealand

      Application Guide en-GB 2024-06-27

      PDF
      1,57 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager New Zealand

      EU Declaration of Conformity

      Declaration of conformity en-GB, fr-FR 2024-03-28

      PDF
      360,90 kB
      Image UKCA Declaration of Conformity | Hager New Zealand

      UKCA Declaration of Conformity

      Declaration of conformity en-GB 2024-03-28

      PDF
      270,31 kB
