Output module 1x 10A /230V~, flush mounted, KNX TYBS601B
Available soon
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS, easy
Dimensions
-
Height44 mm
-
Width43 mm
-
Depth22 mm
-
Built-in depth40 mm
Installation, mounting
-
Mounting onFlush mounting
Architecture
-
Bus systemKNX Secure
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalNo
-
With switch for manual switchYes
Electric current
-
Max. switching current10 A
-
Rated current IN10 A
-
Bus current consumption while idle5 mA
Frequency
-
Frequency50 - 60 Hz
Power
-
Power incandescent lamp 230 V600 - 600 W
-
Output power500 W
-
230 V incandescent and halogen lamp600 W
-
Power incandescent lamp600 - 600 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage30 V DC Via bus
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor0.75 - 2.5 mm²
-
Cross-section flexible conductor0.75 - 2.5 mm²
Texts
-
Type of connectionWith screw terminals
Data act compliance
-
Is generating dataYes
-
Data typesBasic information, General diagnostics, On/Off status, Scenes, Software diagnostics, Thermostat
-
Data formatsKNX (TP)
-
Estimated daily data volume10 KB - 100 KB
-
Real time data generationYes
-
Data stored on deviceNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

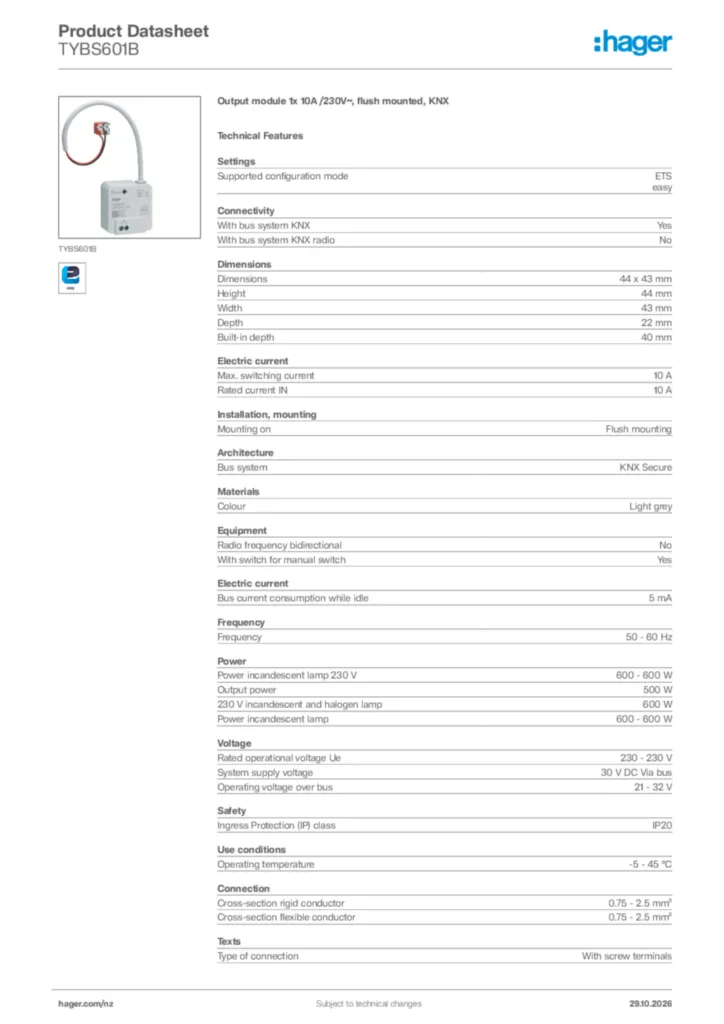

Hager Product data sheet TYBS601B
Output module 1x 10A /230V~, flush mounted, KNX
PDF -
Instruction manual
Instruction manual de-AT, de-DE, de-CH 2025-04-01
PDF687,00 kB
Instruction manual en-AU, en-NZ, en-GB, en-US 2025-04-28
PDF686,74 kB
Instruction manual es-ES 2025-05-12
PDF687,97 kB
Instruction manual fr-FR 2025-05-12
PDF687,96 kB
Instruction manual it-IT 2025-05-12
PDF686,08 kB
Instruction manual nl-NL 2025-05-12
PDF685,79 kB -
Installation manual
Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, es-ES, pt-PT, zh-CN 2024-01-15
PDF4,89 MB -
Manual
Manual en-GB 2015-09-24
PDF1,47 MB -
ProductETSBase
KNX product database International 2024-05-07
KNXPROD167,76 kB -
ProductApplicationDescription
Application Guide en-GB 2024-06-27
PDF905,28 kB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB, fr-FR 2024-04-04
PDF363,61 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2024-04-04
PDF270,10 kB
