Safety transformer 63VA 230V12-24V ST315
EAN
3250615703156
Packaging
2 PCEs
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules6
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50 Hz
Voltage
-
Rated insulation voltage4000 V
-
Output voltage 224 V
-
Open circuit voltage secondary14.2 / 26.5 V
-
Output voltage12 / 24 V
Electric current
-
Output intensity 22.63 A
-
Output intensity5.25 A
Dimensions
-
Depth of installed product68 mm
-
Height of installed product85 mm
-
Width of installed product105 mm
Power
-
Power consumed63 VA
Power supply
-
TransformerSafety transformer to
Installation, mounting
-
Tightening torque1,2Nm
-
Suitable for surface mountingYes
-
Suitable for flush-mountingNo
-
Mounting typedin-Rail
Connection
-
Connection cross-sect. flexible conductor4mm²
-
Connection cross-sect. rigid cable6mm²
Cable
-
Max. cable length to door actuator release 0.5 Amax. 100 m
-
Max. cable length to door actuator release 1 Amax. 50 m
Equipment
-
On/Off switchNo
-
Short-circuit protectedYes
Standards
-
Standard textEN 61558-2-6
-
ApprovalsEN 61558-2-6
Safety
-
Temperature protectionYes
Use conditions
-
Operating temperature-20…35 °C
-
Altitude<= 2000 m
Downloads
-
Product image
-

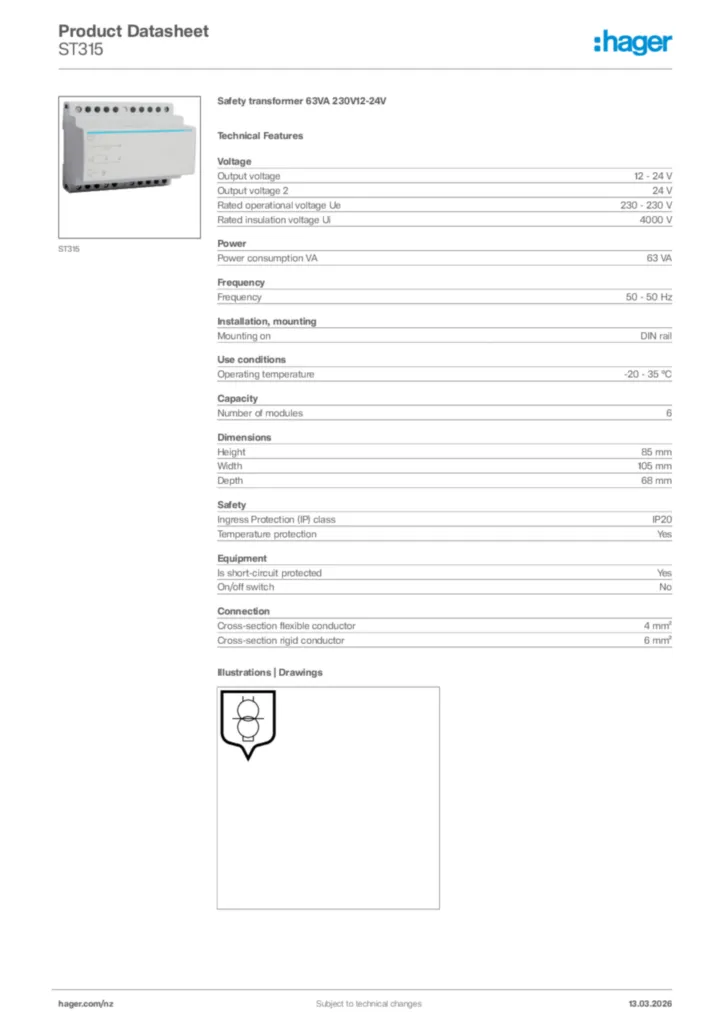

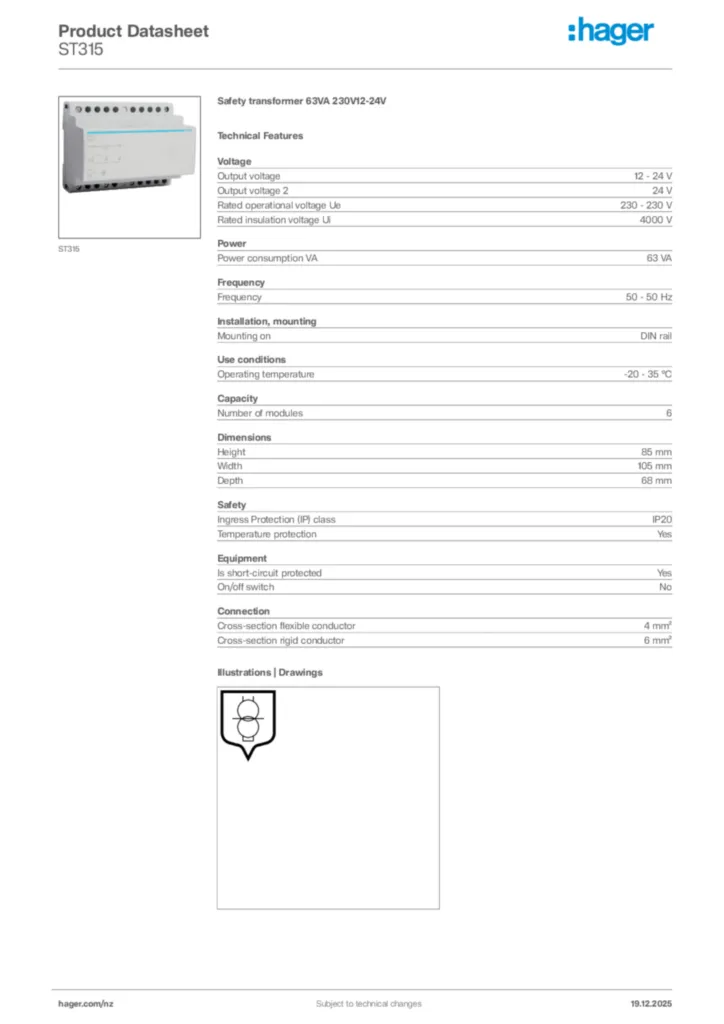

ProductDataSheet
