Bell transformer 16VA 230V 8-12V ST305
EAN
3250615703057
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules3
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50 Hz
Voltage
-
Rated insulation voltage4000 V
-
Output voltage 212 V
-
Output voltage8 / 12 V
Electric current
-
Output intensity 21.33 A
-
Output intensity2 A
Dimensions
-
Depth of installed product65 mm
-
Height of installed product111 mm
-
Width of installed product54 mm
Power
-
Power consumed16 VA
-
Total power loss under IN1.8 W
Installation, mounting
-
Tightening torque1,2Nm
-
Suitable for surface mountingYes
-
Suitable for flush-mountingNo
Connection
-
Connection cross-sect. flexible conductor4mm²
-
Connection cross-sect. rigid cable6mm²
Equipment
-
On/Off switchNo
-
Short-circuit protectedYes
Standards
-
Standard textEN 61558-2-6
Use conditions
-
Operating temperature-20…35 °C
-
Altitude<= 2000 m
Downloads
-
Product image
-

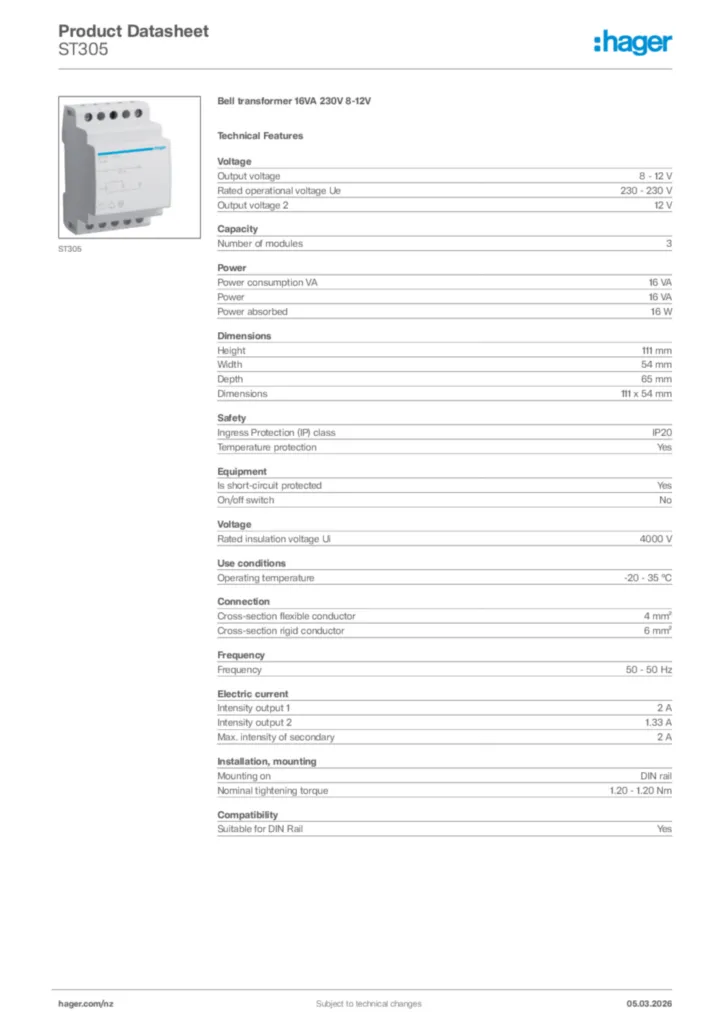

ProductDataSheet
