Selector switch non spring ret SK600
EAN
3250615616005
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Number of poles1
-
Type of pole1P
Electric current
-
Rated current20 A
-
Rated conditional short-circuit current Icc with gl-gG fuses8 kA
Voltage
-
Rated operational voltage Ue660 - 660 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui690 V
Capacity
-
Number of modules3
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 50 Hz
Dimensions
-
Height85 mm
-
Width53 mm
-
Depth64 mm
Equipment
-
Number of NO contacts0
-
Number of NC contacts0
Use conditions
-
Operating temperature-10 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor1.5 - 10 mm²
-
Cross-section rigid conductor1 - 6 mm²
Power
-
Total power loss under IN0,70 W
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

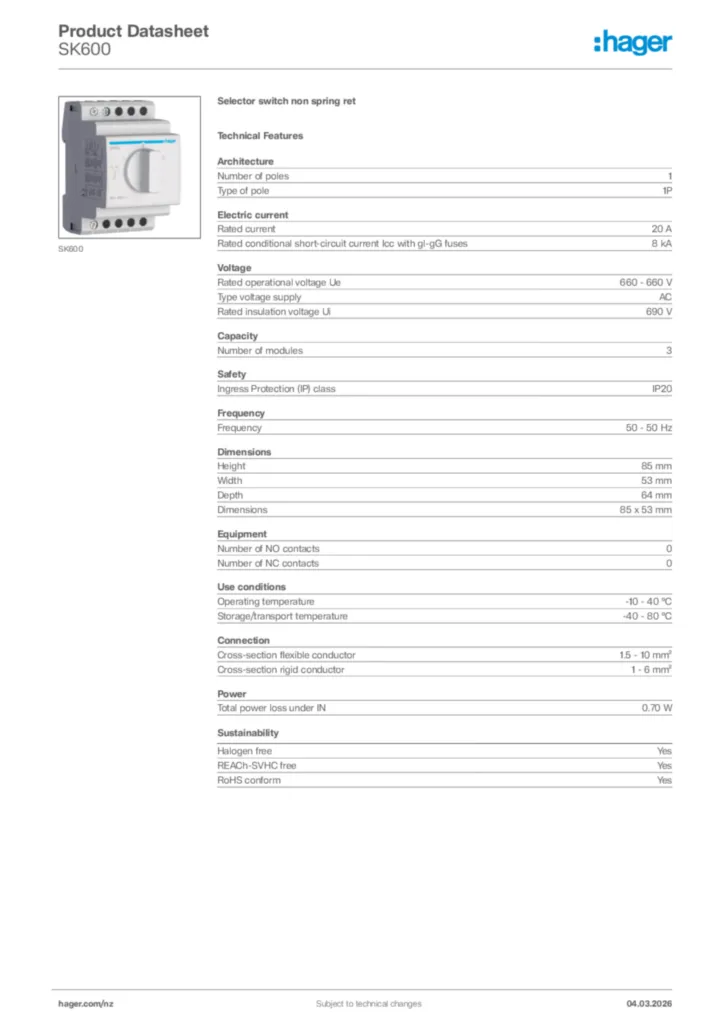

Hager Product data sheet SK600
Selector switch non spring ret
PDF -
Declaration of conformity
Declaration of conformity for Inverter / Switch
Declaration of conformity International 2021-10-13
PDF133,67 kB
Declaration of conformity for Inverter / Switch
Declaration of conformity International 2019-11-04
PDF115,04 kB
