I-O-II Single Pole, Centre - Off with Top Common Point

1-pole, 40A Centre Off Modular Changeover Switch with Top Common Point SFT140

EAN

3250615510914

Packaging

1 Piece

Technical properties
Documentations
Accessories
More products

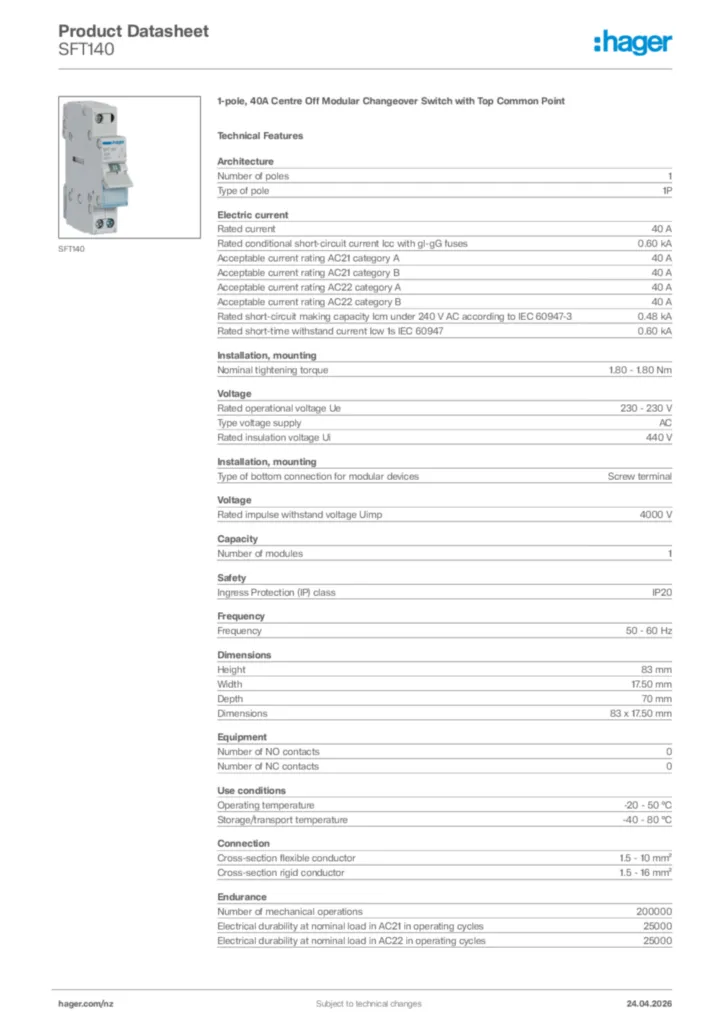

Download the data sheet

Technical properties

Type of order

Changeover switch
Number of poles

1 P
Type of pole

1 P

Number of modules

1

Rated operational voltage Ue

230 V
Frequency

50/60 Hz

Rated insulation voltage

440 V
Type of voltage input 1

AC
Rated impulse withstand voltage

4000 V

Rated operational current in AC21category B

40 A
Acceptable current rating with AC22 category A

40 A
Rated current

40 A
Rated short-time withstand current 1s

0.6 kA
Thermal rated current outside of housings

40 A
Rated operational current in AC21 category A

40 A
Acceptable current rating with AC22 category B

40 A

Depth of installed product

70 mm
Height of installed product

83 mm
Width of installed product

17.5 mm

Frequency

50 to 60 Hz

Total power loss under IN

2.1 W
Power loss per pole at In

2.1 W

Electrical durability at nominal load in AC21in operating cycles

25000
Electrical durability at nominal load in AC22 in operating cycles

25000
Number of mechanical operations

200000

Tightening torque

1,8Nm

Connection cross-sect. flexible conductor

1,5 / 10mm²
Connection cross-sect. rigid cable

1,5 / 16mm²
Cage clamp position

off set
Type of connection

with screw

Quantity of NC contacts

0
Quantity of NO contacts

0
Quantity of INV contacts

1

Standard text

IEC 60947-3

Halogen free

No

Operating temperature

-20…50 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Altitude

2000 m
Storage/transport temperature

-40…80 °C
