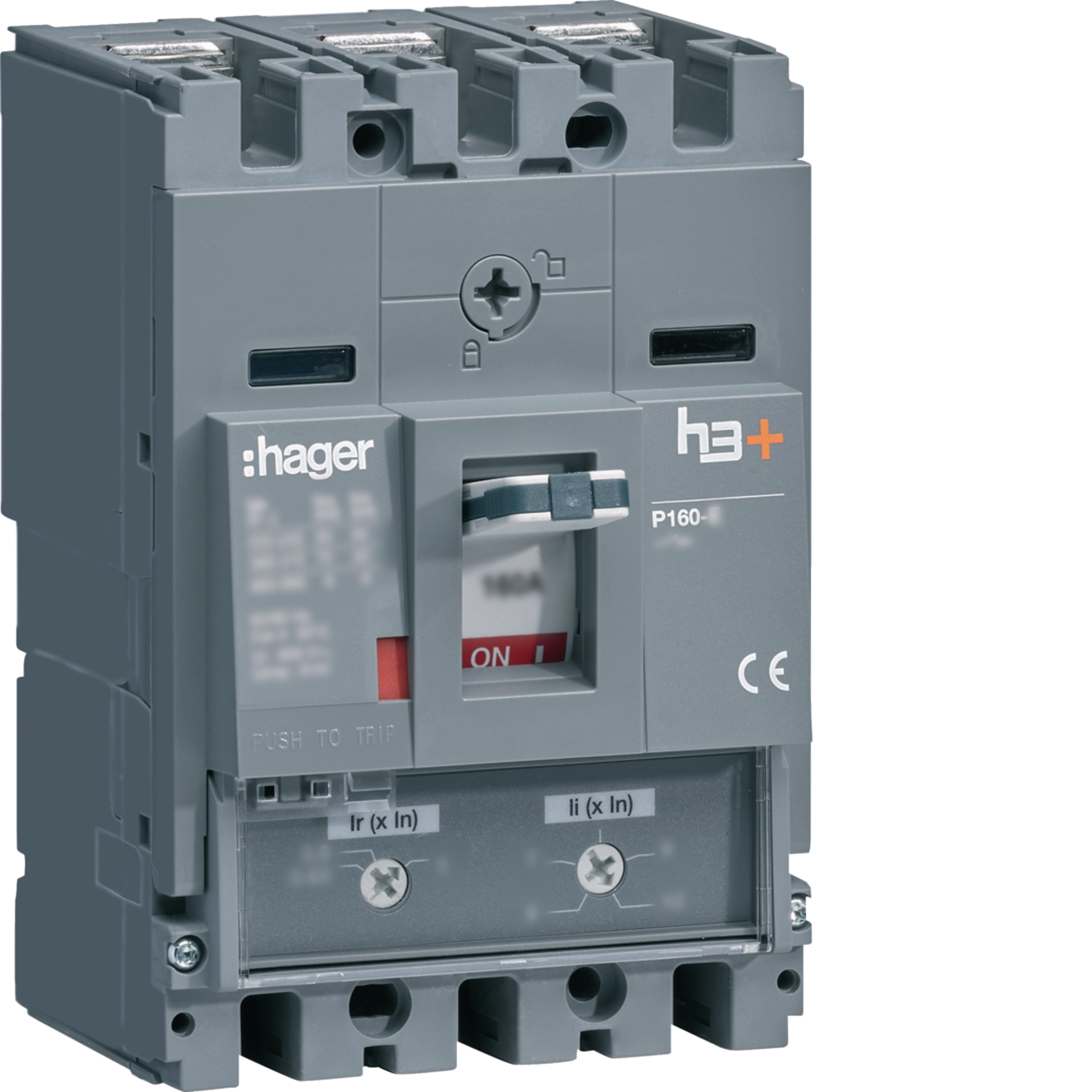

Moulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 40A 50kA FTC

HMS040DR

  • Main Switchgear

Moulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 40A 50kA FTC HMS040DR

EAN
3250613161057
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.
